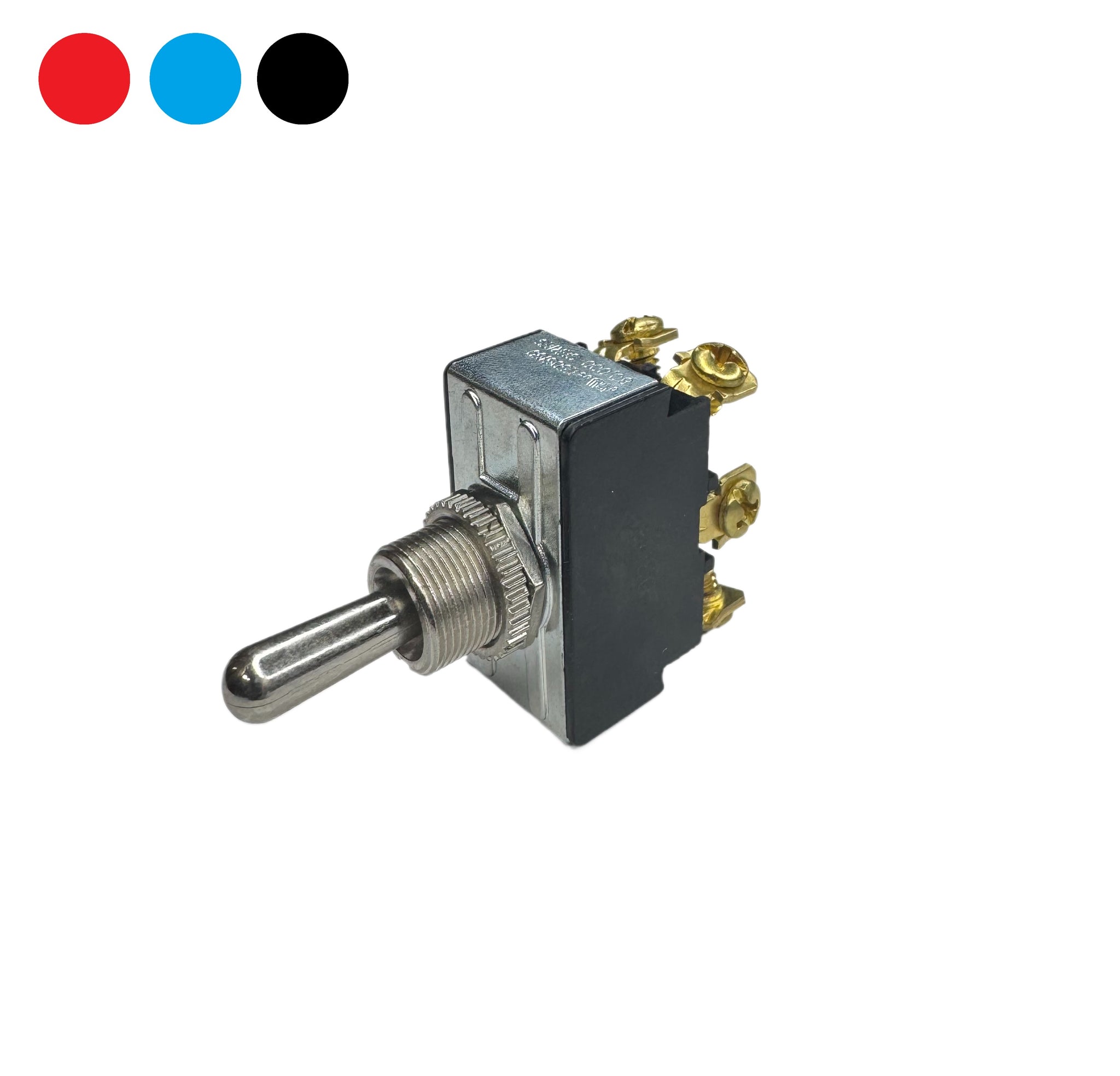

On-Off-On DPDT Heavy Duty Toggle w/ Screw Terminals
$6.89
| /
This On-Off-On DPDT heavy duty toggle switch features brass screw terminals, a steel zinc chromate frame, and a black phenolic plastic case rated UL 94V-1. It is rated for 10A at 277V AC, 20A at 125V AC, and 21A at 14V DC with a 1-1/2 HP motor load capacity at 125-250V AC.
• Circuit Configuration: DPDT (Double Pole Double Throw)
• Switch Action: ON-OFF-ON (latching in all three positions)
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (double pole)
• Motor Load Rating: 1-1/2 HP @ 125-250V AC (double pole)
• Terminal Type: Brass screw terminals
• Frame Material: Steel with zinc chromate support
• External Components: Brass with bright nickel plating
• Case Material: Black phenolic plastic (UL 94 flame class 94V-1 rated)
• Mounting Hole Diameter: 1/2" (0.500")
• Power Window & Sunroof Controls - Control automotive power windows, sunroofs, and convertible tops where three-position latching allows selection between up, off, and down positions for precise motor control with maintained switch position.
• Marine Windlass & Trim Tab Systems - Operate anchor windlasses, trim tabs, and adjustable outdrives in boats where three-position switching provides up, off, and down control with latching action maintaining the selected position for extended operation.
• Industrial Conveyor & Material Handling - Control reversible conveyor belts, hoists, and material handling equipment where operators need latching forward, off, and reverse control for sustained bidirectional operation without holding the switch.
• RV Slide-Out & Leveling Systems - Operate RV slide-out rooms, leveling jacks, and awning motors where three-position latching control provides extend, off, and retract positions with maintained switch state for extended motor operation.
• UL 94 Flame Class 94V-2 (case material flammability rating)
