How to Size Marine Battery Cable: A Practical Guide to Wire Gauge and Voltage Drop

Choosing the correct marine battery cable is one of the most important steps in building a reliable 12V or 24V boat electrical system. A cable that is too small can create excessive voltage drop, reduce equipment performance, and generate unwanted heat. A cable that is oversized may cost more and be harder to route, but it can provide better efficiency and room for future upgrades.

This guide explains how to select marine wire gauge using the circuit load, total cable length, system voltage, allowable voltage drop, conductor temperature, and installation conditions. It is written for boat owners, marine technicians, and builders working on battery feeders, switch panels, electronics, pumps, lighting, windlasses, and other DC loads. Always verify the final installation against the current requirements of the applicable standard, the equipment manufacturer, and local regulations.

Why marine cable sizing is different

Marine DC systems commonly operate at low voltages, so even a small loss of voltage can be significant. For example, a 3% loss on a 12V circuit is only 0.36V. That amount may affect sensitive electronics, navigation equipment, bilge pumps, or a motor that needs adequate starting torque. The longer the run and the smaller the conductor, the greater the resistance and cumulative voltage drop.

Marine wiring also faces moisture, vibration, salt air, heat, and confined routing spaces. Marine-grade tinned copper cable helps resist corrosion, while properly supported cable and sealed terminations reduce the effect of movement and exposure. For product selection, review the Battery Cable collection and pair the cable with appropriate ring crimp terminals or tinned copper lugs.

Step 1: Determine the circuit current

Start with the maximum expected current of the load, not only its typical operating current. Use the equipment nameplate, installation manual, or measured current where appropriate. Motor loads such as windlasses, pumps, thrusters, and starter circuits can have high transient or starting demand. When several devices share a feeder, add the expected simultaneous loads and account for any continuous-load requirements specified by the applicable standard.

For a new circuit, write down the load in amps. If the equipment is rated in watts, estimate current with the relationship current = power ÷ voltage. At the same wattage, a 12V system draws twice the current of a 24V system, which is why 24V distribution can often use a smaller conductor for the same power transfer. Treat this calculation as a sizing starting point and confirm it against the equipment documentation.

Step 2: Measure the complete cable run

Measure from the source to the load and back again. A positive conductor running 12 feet from the battery to a device has a 24-foot round-trip path when the negative return is included. Forgetting the return conductor is a common reason for underestimating voltage drop.

Include practical routing details rather than measuring a straight line. Account for the distance through a battery compartment, switch, fuse, panel, conduit, harness, and equipment enclosure. If a branch circuit uses a panelboard or bus bar, identify the exact section being sized. Accurate length is especially important for low-voltage circuits and long runs to the bow or stern.

Step 3: Choose the allowable voltage drop

A useful marine design practice is to reserve the lowest voltage-drop limit for critical or sensitive circuits. A 3% limit is commonly used for navigation lights, electronics, bilge pumps, engine instruments, and main feeder cables. A 10% limit may be acceptable for less sensitive loads such as some cabin lighting or accessory outlets, provided the equipment and the applicable standard permit it.

When in doubt, design for the lower voltage-drop target. Moving up one or more cable sizes can improve performance and reduce nuisance issues caused by low voltage. A voltage-drop calculator based on the ABYC E-11 framework can help compare the conductor size required by voltage drop with the size required by ampacity. The larger conductor requirement governs.

Step 4: Check ampacity and installation conditions

Voltage drop is only one constraint. The cable must also carry the current without exceeding its safe temperature. Check the conductor’s insulation temperature rating, ambient temperature, the number of current-carrying conductors bundled together, and whether any part of the run passes through an engine compartment. A short section in a hotter location can affect the selection for the installation.

Do not select a fuse simply because it matches the load’s normal current. Overcurrent protection must protect the conductor and be appropriate for the circuit. In general, the protective device should not exceed the allowable ampacity of the conductor, subject to the specific exceptions and requirements of the governing standard. Place protection close to the power source where required, and use components rated for the system voltage, current, and environment.

Step 5: Select cable, terminals, and protection together

A dependable installation is more than a wire gauge. Select cable, terminals, lugs, fuses, holders, switches, and supports as a system. The terminal should fit the cable size and stud diameter, and the crimp should be made with the correct tool. Heat-shrink insulation can provide strain relief and an additional barrier against moisture when used correctly.

For protection and routing accessories, browse dual-wall heat shrink, terminal blocks, cable clamps, and wire and cable management. Use grommets wherever cable passes through a panel or bulkhead, keep conductors clear of sharp edges and moving parts, and support long runs so vibration does not load the terminals.

Common marine wiring mistakes

• Using one-way distance: The voltage-drop calculation normally needs the complete circuit length, including the return path.
• Choosing by ampacity alone: A cable may pass an ampacity check but still lose too much voltage over a long run.
• Using unprotected positive conductors: A short circuit near the battery can release very high fault current. Follow the applicable overcurrent-protection requirements.
• Mixing incompatible materials: Poorly matched metals and unsealed connections can accelerate corrosion in a marine environment.
• Ignoring future loads: If a panel or feeder will later support more electronics, lighting, or charging equipment, consider the likely expansion before routing cable.
• Relying on color alone: Trace and label both ends of every conductor, especially in refits where previous wiring may be inconsistent.

A simple sizing workflow

For each circuit, record the system voltage, maximum current, complete one-way route, return path, desired voltage-drop limit, conductor insulation rating, bundle conditions, and engine-compartment exposure. Use those inputs to identify the minimum size permitted by ampacity and the minimum size needed for voltage drop. Select the larger cable, then verify the fuse or breaker, terminals, routing, support, and termination method.

Finally, inspect the completed installation. Confirm that connections are tight, cable is supported, protection is accessible, labels are readable, and no conductor is rubbing against a sharp edge. After energizing the circuit, check for abnormal heating, measure voltage at the load under operating conditions, and correct any unexpected drop before placing the system into service.

Safety note: This article is educational and is not a substitute for the current ABYC, ISO, classification, electrical, or local code requirements. Disconnect power before modifying a circuit, use appropriately rated personal protective equipment, and have critical systems inspected by a qualified marine electrician.

For marine and 12V wiring projects, explore the Electrical Supply Center collections for wire and cable, butt connectors, and heat-shrink tubing.

Further reading: ABYC and ISO wire-size calculator guidance and ABYC DC wire-sizing reference.

Learn seven practical ways to build a more reliable 12V marine electrical system, from tinned copper wire and circuit protection to sealed connections, chafe prevention, and inspection.

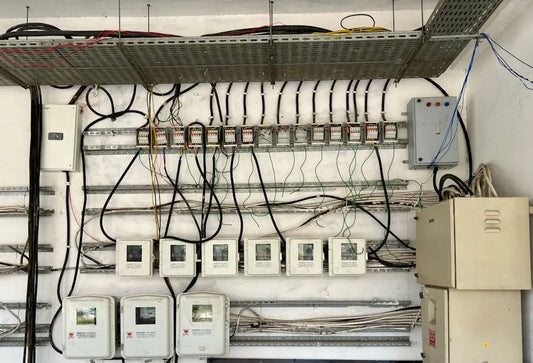

Rubber Grommet Size Chart for Electrical Panel Wiring: 3 Measurements That Prevent Abrasion

A wire can be perfectly terminated at both ends and still fail at the panel opening between them. The usual culprit is a harness moving against a sharp, unfinished edge as a machine vibrates, a truck crosses a rough road, or an enclosure door opens. Early warnings include a crescent worn into insulation, a rubber edge that has not seated all the way around, or a bundle pulled sideways when the cover goes back on.

That is where the right rubber grommet earns its place. It creates a protected interface between the panel edge and the cable, but only when it matches the opening, the panel, and the wiring that passes through it. A random assortment-box grommet may look close enough at the bench and still pop out or pinch the cable after installation.

This guide uses a practical rubber grommet size chart for electrical panel wiring: not a list of universal diameters, but the three measurements that must agree before a grommet goes into a panel. It also explains when a grommet is only edge protection, when additional strain relief is needed, and how to install it without creating the very damage you are trying to prevent.

The three measurements to write down before ordering

For a standard open grommet in a round panel hole, selection starts with three dimensions: panel-hole diameter, panel thickness, and the outside diameter of the cable or finished bundle. Manufacturers describe the same relationship in their product data because the groove has to capture the panel edge while the center opening protects the wire without crushing it. [1] [2]

Use the illustration as a three-part check

1. Panel-hole diameter: Measure the finished hole, not the drill-bit label, with calipers. Paint, powder coat, or a rough punched edge can change the opening from its nominal size.
2. Panel thickness: Measure the sheet at the opening and include bonded layers that sit in the groove. The groove must actually capture the panel edge all the way around.
3. Cable or bundle outside diameter: Measure the finished cable, loom, or taped bundle at the pass-through. Do not measure bare conductors before heat shrink, split loom, braid, or tape is installed.

This is a selection check, not a universal numerical size chart. Grommet dimensions vary by design and manufacturer, so use the actual product listing or drawing to match all three measurements.

Start at the panel, not at the wire spool

On a clean new enclosure, the hole measurement is straightforward. On a retrofit, it often is not. A 7/8-inch knockout may have a slightly rolled edge. A fabricated aluminum panel may have a burr on the back side. A painted steel bulkhead can gain enough coating thickness that a grommet which fit before finishing now resists seating. Those are mechanical details, but they determine whether the two flanges lie flat against the panel.

Use calipers when the fit matters, then inspect both faces of the opening under good light. The goal is a smooth, round edge with no razor-like burr that can slice the rubber as it is pressed in. If the opening is a long rectangular cutout or an irregular edge, a round grommet may be the wrong product category. Edge trim or a longer protective profile may give the harness continuous coverage instead. Grommet edging is commonly used for larger or non-round sharp cutouts, while snap-in grommets are suited to smaller round pass-throughs. [2]

For wiring projects that also need routing support away from the opening, pair the pass-through protection with products from the Cable Management collection. The job is not finished because the wire cleared the hole once; the routing must keep the bundle from rubbing the panel over its service life.

Decide what the grommet is supposed to do

A standard open rubber grommet is primarily edge protection. It can reduce abrasion where a cable crosses sheet metal or a panel wall, and some designs can provide limited retention. That does not automatically make it a liquid seal, a listed cord connector, or a substitute for a strain-relief fitting. Those requirements depend on the enclosure, cable type, movement, environment, and the governing installation instructions.

Think about three real installation conditions before choosing the part:

• Movement: A fixed control-panel conductor is different from a cable that flexes every time a machine guard opens. Where repeated movement can pull on the cable, select a purpose-designed strain-relief system or clamp in addition to edge protection.
• Environment: Oil, UV exposure, washdown, heat, and salt air change the material question. Do not assume every rubber grommet provides the same chemical or weather resistance. Verify the material and environmental rating for the specific product.
• Bundle shape: A single round cable and a flat trailer cable do not occupy a round opening in the same way. Avoid forcing a wide harness through an undersized center opening simply because the panel hole is convenient.

A useful shop-floor check is to install the grommet first, then pass the finished cable or bundle through it. If the harness must be twisted hard, the grommet flange lifts, or the jacket contacts bare metal anywhere around the circumference, stop and reassess the geometry. A grommet that is only half seated can migrate under vibration and expose the same edge it was meant to cover.

A five-minute installation sequence that prevents rework

1. Measure the finished opening and panel. Record the hole diameter and panel thickness before picking a part number.
2. Deburr and clean both sides. Remove chips, sharp edges, and paint flakes. Metal shavings left inside an enclosure are not a minor housekeeping issue.
3. Seat one section of the groove, then work around the opening. Apply even hand pressure until the groove has captured the edge all the way around. Do not lever against the rubber with a sharp screwdriver.
4. Route the finished cable through the center. Confirm that the jacket moves through the opening smoothly and remains clear of raw metal.
5. Support the run after the pass-through. Add a correctly chosen clamp or tie point so the cable’s weight and service movement are not carried by the grommet alone.

The sequence matters most on equipment that sees vibration. A 12-volt accessory panel on a work truck, for example, may look fine during a stationary bench test but experience far more cable movement over potholes, gravel roads, and freeze-thaw season. In an industrial enclosure, frequent door swings can create the same problem when the wire bundle leaves the fixed back panel and crosses into the door. In both cases, the grommet protects the panel crossing while routing hardware controls the rest of the cable path.

When a cable clamp belongs in the same design

Use a grommet to protect against the edge. Use a clamp when the cable needs support or when pulling force must be kept away from a termination. That distinction is especially important near terminal blocks, switches, and fuse hardware, where a cable tug can transfer force into a connector or loosen a termination over time.

For a rigid panel or chassis route, review the Cable Clamps collection alongside the grommet selection. Place the support so there is enough slack to avoid a sharp bend at the pass-through, but not so much unsupported length that the cable can whip or rub. The right distance depends on the cable construction, bend radius, load, and equipment instructions—there is no defensible one-size-fits-all spacing rule.

Quick troubleshooting before closing the panel

If the grommet will not stay seated, recheck the finished hole diameter and panel thickness. If the jacket looks pinched, remeasure the completed cable or bundle, including loom and heat shrink. If the cable still rubs, inspect the entire movement path: the route may need a different opening treatment or added support rather than a tighter grommet.

Build the pass-through around the finished harness

The most reliable grommet installation starts after the cable route is known, not before. Measure the finished panel opening, panel thickness, and finished cable or bundle; compare each dimension with the chosen product’s specifications; then install the grommet into a clean, deburred opening. For high-vibration or pull-prone runs, add appropriate cable support rather than asking a basic pass-through grommet to perform every mechanical job.

Explore Rubber Grommets for panel-edge protection, then complete the routing plan with Cable Management components. For field wiring and equipment installations, follow the relevant product instructions, equipment listing, and applicable electrical requirements.

References

1. Essentra Components, “A Guide to Rubber Grommets.”
2. HellermannTyton, “Cable Grommets for Secure Cable Management.”

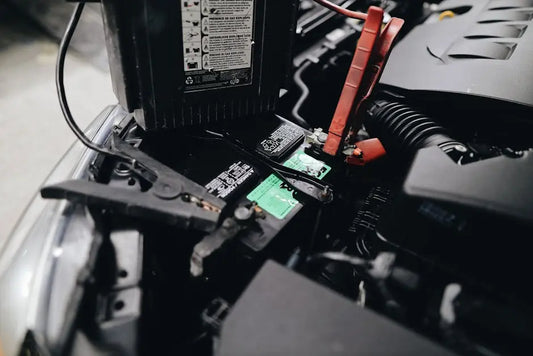

Reliable marine electrical systems start with the connections that carry the most current. A battery cable may look straightforward, but its conductor size, termination quality, insulation, strain relief, and routing all influence whether a 12V system delivers dependable power or becomes difficult to troubleshoot. Salt air, spray, vibration, engine heat, and repeated motion can turn a small weakness at a terminal into voltage drop, intermittent electronics, or unwanted heat.

This guide explains how to plan a durable marine battery cable connection for starting, charging, house-bank, and accessory circuits. It focuses on practical selection and installation principles rather than a one-size-fits-all wiring recipe. Always follow equipment instructions and applicable marine electrical standards, and use a qualified marine electrician where the scope, protection requirements, or system design calls for one.

Why battery-cable connections deserve extra attention

Battery cables carry high current, so a marginal connection has a disproportionate effect. Resistance at a loose, undersized, damaged, or corroded termination can produce a measurable voltage loss when a load is switched on. That can make a starter sluggish, cause electronics to reset, or leave a charger and battery monitor with readings that do not match what is happening at the battery.

Marine installations add environmental pressure. Even when a cable is not submerged, humid air and salt residue can reach exposed conductor strands and connection interfaces. Vibration can fatigue unsupported cable runs, while sharp edges and chafe points can damage insulation. The right parts are important, but so are clean routing, mechanical support, and a deliberate inspection routine.

Start with the circuit, not the cable

Before choosing cable or terminals, identify the circuit’s continuous and peak current, the route length for both the outgoing and return paths, the expected duty cycle, and the equipment manufacturer’s requirements. Voltage drop is especially important in low-voltage DC systems because a small drop represents a meaningful share of the available voltage. A cable that seems adequate on paper may still underperform if the run is long or the connection points are poor.

Plan the entire current path: battery positive, circuit protection, switch or distribution point, load, negative return, and battery negative. Do not size only the positive lead and overlook the return conductor. If the system uses a shared negative bus, engine bonding, or multiple battery banks, document the path before work begins. A simple wiring diagram and labeled cables will make future maintenance much faster.

For the cable itself, begin with a purpose-built battery cable that matches the electrical load and installation environment. Verify conductor material, insulation rating, flexibility, and the product specifications for the intended use. Avoid selecting solely by the outside diameter or a nominal gauge printed on an old cable. The conductor cross-section and the complete circuit design determine performance.

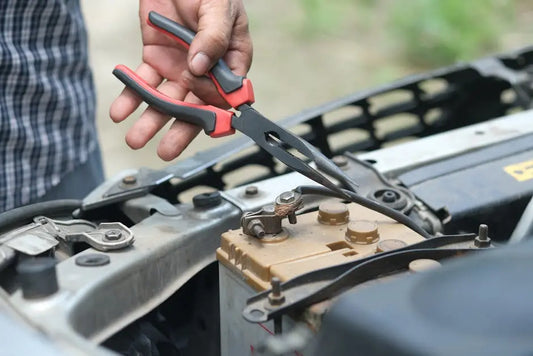

Choose the terminal to match the cable and connection point

A terminal must fit both sides of the connection: the cable conductor and the stud or post it will attach to. Confirm the conductor range, the stud-hole diameter, and the orientation needed for a strain-free run. A lug that is too large for the conductor can crimp poorly; a lug that does not fully seat on a stud may loosen or create a high-resistance contact point.

For marine battery and distribution connections, tinned copper lugs are a practical choice when their dimensions and ratings suit the application. Their tin-plated surface is intended to improve corrosion resistance while preserving the conductivity benefits of copper. For smaller conductors and stud-mounted terminations, the store’s ring terminals collection provides another internal-link destination and a useful category to compare by wire range, insulation, and stud size.

Do not force a terminal into position after crimping. Instead, mock up the routing first so the cable reaches the connection point with a gentle bend and enough service slack for inspection. The terminal tongue should sit flat against a clean contact surface. A stack of unnecessary washers, paint, dirt, oxidation, or a twisted cable can compromise an otherwise good termination.

Make a repeatable crimp-and-seal process

Consistent preparation is the difference between a connection that looks finished and one that performs reliably over time. Cut the cable cleanly with a tool suited to its size, then strip only the insulation length specified by the terminal manufacturer. The conductor strands should be intact, clean, and fully inserted into the barrel. Do not nick strands to make them fit, and do not leave exposed conductor beyond what the terminal design calls for.

Use a crimping tool and die appropriate to the lug type and cable size. A proper crimp creates mechanical retention and a low-resistance electrical interface; it is not simply a flattened barrel. After crimping, perform the manufacturer-recommended inspection and a sensible pull check. If the terminal can move, the crimp pattern is wrong, or strands are visible where they should not be, cut it off and start again rather than trying to repair the joint.

Next, protect the termination with correctly sized heat shrink tubing. Choose the tubing construction for the moisture, abrasion, and flexibility demands of the installation, and verify its shrink range before applying heat. Shrink it evenly with an appropriate heat source, working carefully around insulation and nearby components. The goal is neat coverage and strain relief without scorching the material or trapping a sharp edge against the cable.

Route and support cable to control vibration and chafe

High-quality cable can still fail if it is allowed to rub, bend sharply, or swing with the vessel’s motion. Route battery cables away from hot exhaust components, moving equipment, fuel-system hazards, and places where standing water can collect. Where a cable must pass through a bulkhead or panel, use suitable grommets or protective fittings. Keep bend radii generous so the conductor and insulation are not stressed at the terminal.

Support runs at sensible intervals using components sized for the cable. The cable management collection includes options such as clamps, loom, and ties that can help organize and protect wiring when selected for the environment and installed without overtightening. Cable support should control movement without compressing insulation or turning a tie into a chafe point. Bundle only compatible circuits, and keep identification visible wherever practical.

Protect, label, and inspect the completed installation

Connection quality is only one part of a safe DC system. Install the correct overcurrent protection and disconnecting means according to the equipment instructions and the system design. Protect positive conductors as close to the source as required by the applicable rules. Label battery banks, major cables, switches, and distribution points clearly enough that another technician can understand the system without guesswork.

During commissioning, inspect every terminal for full seating, correct polarity, secure fastening, and freedom from stress. With appropriate precautions, check voltage at the battery and at the load under normal demand; an unexpected difference can point to a connection or sizing issue. Then add the installation to a seasonal maintenance checklist. Look for discoloration, heat damage, cracked insulation, loose hardware, green or white corrosion residue, abrasion, and water exposure. Correct small issues before they become a no-start condition or a larger repair.

Build reliability into every connection

A durable marine battery cable connection is the result of a complete process: sound circuit planning, correctly sized cable, compatible terminals, a verified crimp, protective heat shrink, secure routing, and regular inspection. Treat each of these as part of one system rather than isolated purchases. When you are ready to build or refresh a boat’s 12V wiring, browse Electrical Supply Center’s wire and cable, battery-cable, tinned-copper-lug, heat-shrink, and cable-management collections to assemble components that fit the job.
