On-On DPDT Heavy Duty Toggle w/ Screw Terminals

On-Off-On DPDT Heavy Duty Toggle w/ Screw Terminals

SW315

$7.89

| /

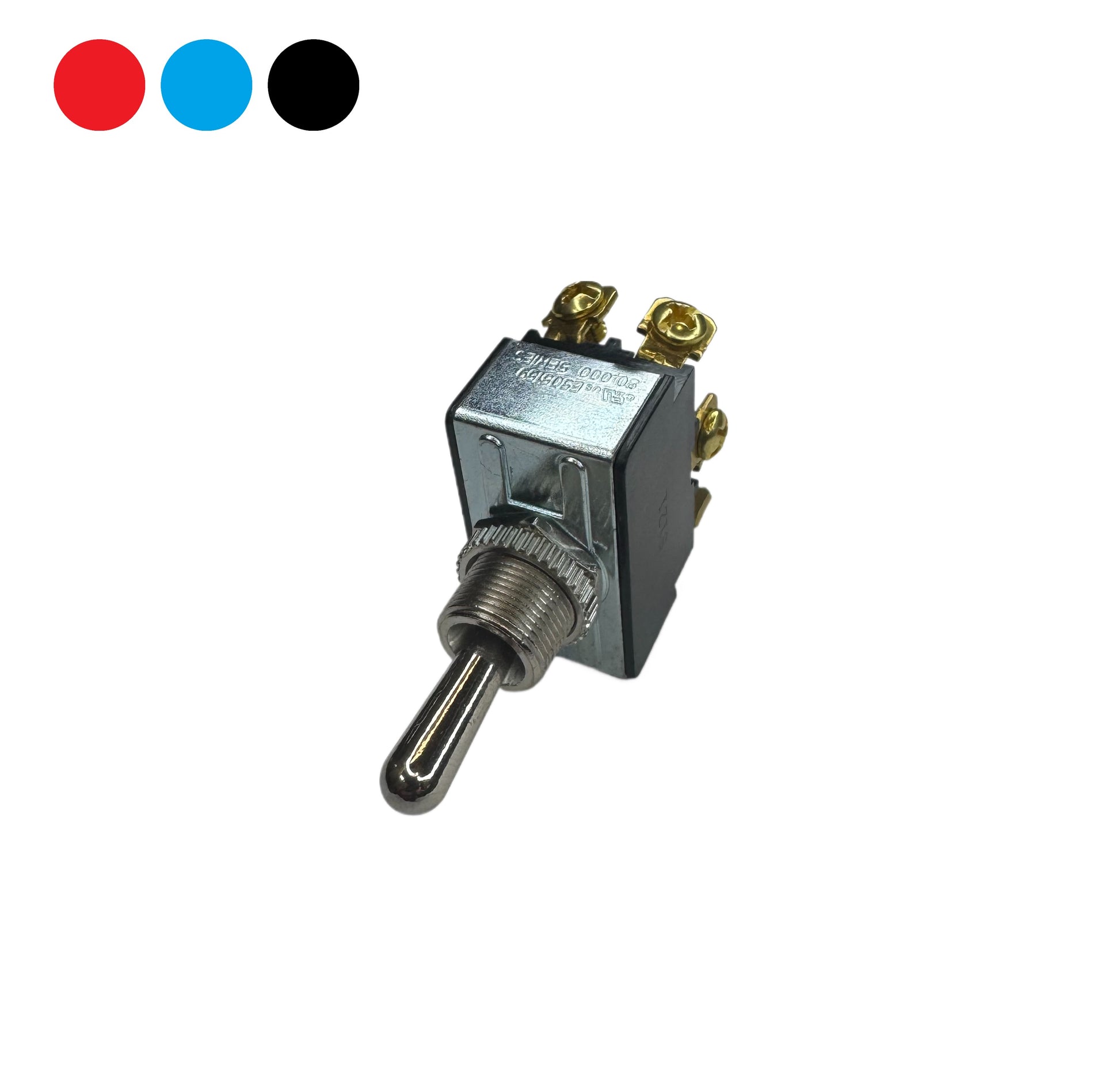

On-Off-On DPDT Heavy Duty Toggle with Screw Terminals. This DPDT switch latches in three positions: ON, center OFF, and ON. Rated 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (double pole); motor load 1-1/2 HP @ 125-250V AC (double pole).

Use it for: switching two circuits at once between two destinations, and motor reversing when wired as a reversing switch with a center OFF.

How it is wired: DPDT (double pole, double throw): two separate circuits, each routed to either of two outputs. Connect with ring terminals or spade terminals under the screws. Mounting hole: 1/2" (0.500"). Always check that the rating covers your load, and fuse the circuit to protect the wire.

Same action and circuit in other styles: On-Off-On DPDT Plastic Toggle with Blade Terminals, On-Off-On DPDT Heavy Duty Toggle with Screw Terminals, On-Off-On DPDT Heavy Duty Toggle with Blade Terminals.

See all toggle switches.

• Circuit Configuration: DPDT (Double Pole Double Throw)
• Switch Action: (ON)-OFF-(ON) - Momentary ON in both directions, spring returns to center OFF
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (double pole)
• Motor Load Rating: 1-1/2 HP @ 125-250V AC (double pole)
• Terminal Type: Brass screw terminals
• Frame Material: Steel with zinc chromate support
• External Components: Brass with bright nickel plating
• Case Material: Black phenolic plastic (UL 94 flame class 94V-1 rated)
• Mounting Hole Diameter: 1/2" (0.500")

• Power Window & Sunroof Controls - Operate automotive power windows, sunroofs, and convertible tops where momentary activation in both directions controls motor forward and reverse, with automatic spring return to center OFF preventing accidental operation and protecting motors from continuous run damage.

• Marine Windlass & Trim Tab Systems - Control anchor windlasses, trim tabs, and adjustable outdrives on boats where momentary up/down operation allows precise positioning with automatic return to OFF, preventing motor burnout and battery drain when released.

• Industrial Conveyor & Material Handling - Control reversible conveyor belts, hoists, and material handling equipment where operators need momentary jog control in both forward and reverse directions for precise load positioning and equipment alignment.

• RV Slide-Out & Leveling Systems - Operate RV slide-out rooms, leveling jacks, and awning motors where momentary extend/retract control provides precise positioning with spring return to center OFF ensuring motors stop automatically when the operator releases the toggle.

• UL 94 Flame Class 94V-2 (case material flammability rating)
