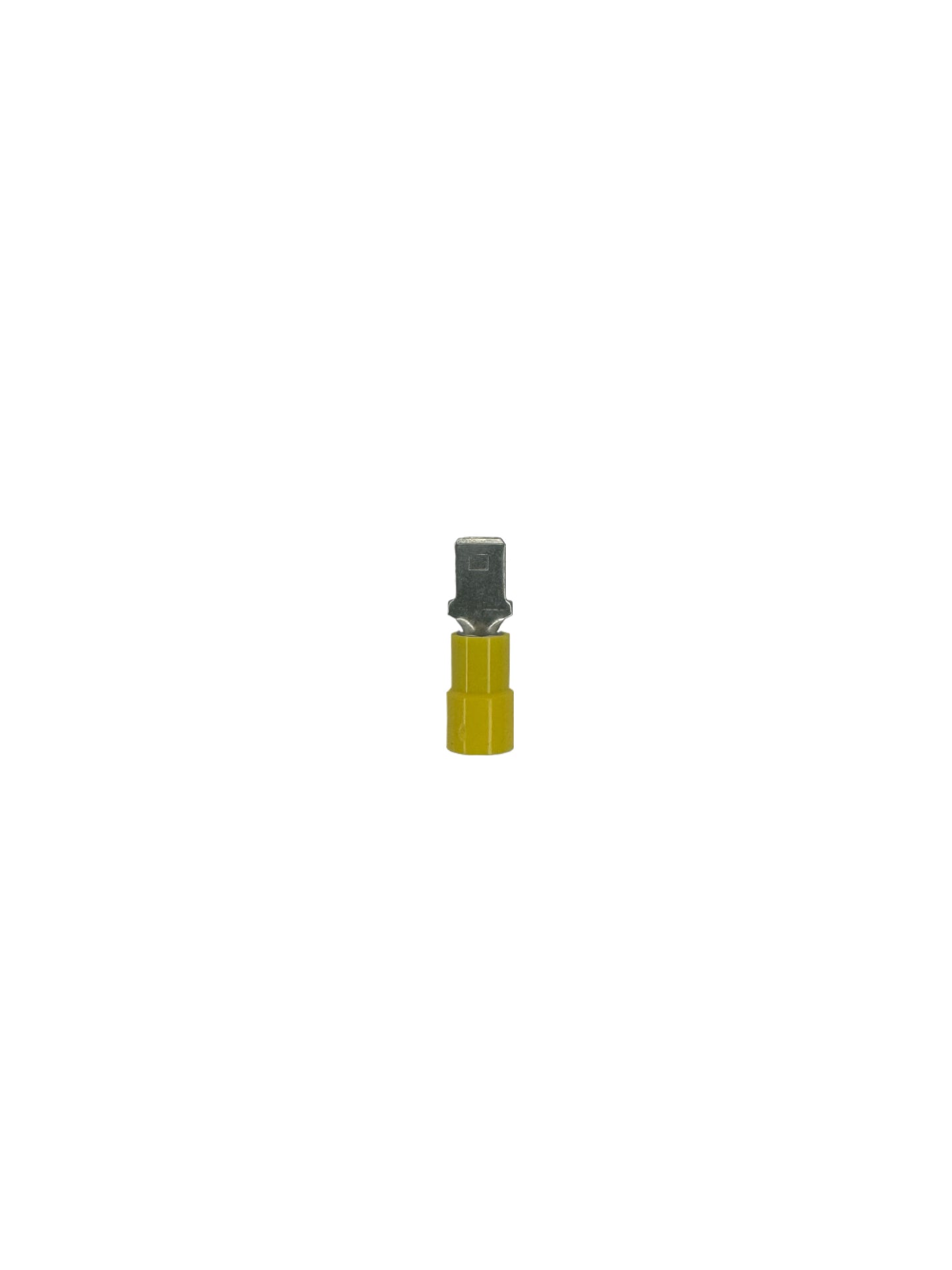

Vinyl Male Disconnect 12-10GA 0.250"

Male quick disconnect for 12–10 AWG stranded copper wire with a 0.250" tab. Vinyl insulation is the economical choice for dry, protected connections. Rated 600V, -40°C to 105°C. Made in USA.

Use it for: higher-current leads to heaters, compressors, pumps, motors and accessory feeds inside cabins, enclosures and control panels where the connection stays dry. 0.250" is the most common tab size — used on switches, relays, speakers, appliances and automotive components.

Getting the right size: match the barrel to the wire gauge and the tab to the receptacle it plugs into. It mates with a 0.250" female disconnect, such as our Vinyl Female Disconnect 12-10GA 0.250". Other wire gauges: 22–18 AWG · 16–14 AWG. Same size, different construction: high temp (900°F), nylon fully insulated, heat shrink fully insulated (waterproof), non-insulated, heat shrink (waterproof), nylon.

Priced per piece — order any quantity. See all quick disconnects.
