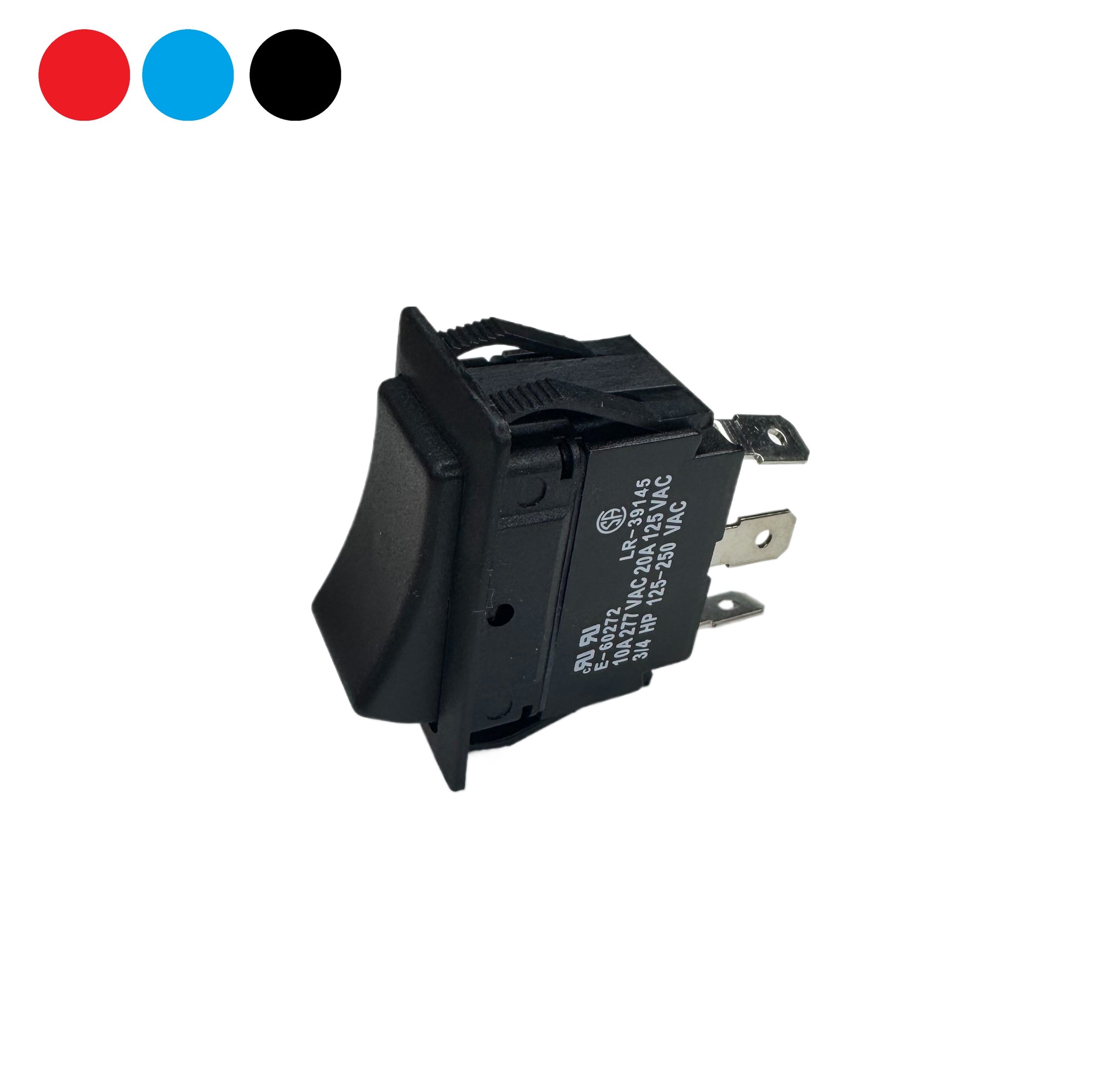

This On-On SPDT rocker switch features a heavy-duty black glass-filled nylon frame and rocker, with flat brass blade terminals rated for 10A at 277V AC and 20A at 125V AC. It provides a latching ON-ON action with no center OFF position and includes a molded elastomer gasket for moisture and dust resistance.
• Circuit Configuration: SPDT (Single Pole Double Throw)
• Switch Action: ON-ON (latching in both positions, no center OFF)
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC
• Motor Load Rating: 3/4 HP @ 125-250V AC (single pole)
• Terminal Type: Heavy-duty flat brass terminals
• Frame Material: Black glass-filled nylon
• Rocker Material: Black glass-filled nylon
• Case Material: Black (UL 94 flame class 94V-2 rated)
• Gasket: Molded elastomer for moisture and dust resistance
• Mounting Hole Size: 0.830" (+/- 0.015) x 1.450" (+/- 0.005)
• Illumination: Non-illuminated
• Construction: Heavy-duty, moisture and dust resistant
• Dual Battery Bank Switching - Switch between two battery banks in marine vessels, RVs, and off-grid systems where power must always come from one battery or the other, with no OFF position ensuring continuous power availability while allowing battery selection for charging or load balancing.
• Redundant System Selection - Select between primary and backup power sources, dual fuel tanks, or redundant equipment in critical applications where continuous operation is required and the system must always be connected to one source or the other without interruption.
• Heating & Cooling Mode Selection - Switch between heating and cooling modes in HVAC systems, or between two different temperature settings in appliances where the system must always be in one operating mode, with no OFF position for continuous climate control.
• Navigation Light Switching - Select between different navigation light configurations or lighting modes in marine and aviation applications where regulations require lights to always be active in one configuration or another, with no OFF option for safety compliance.
• UL 94 Flame Class 94V-2 (case material flammability rating)
