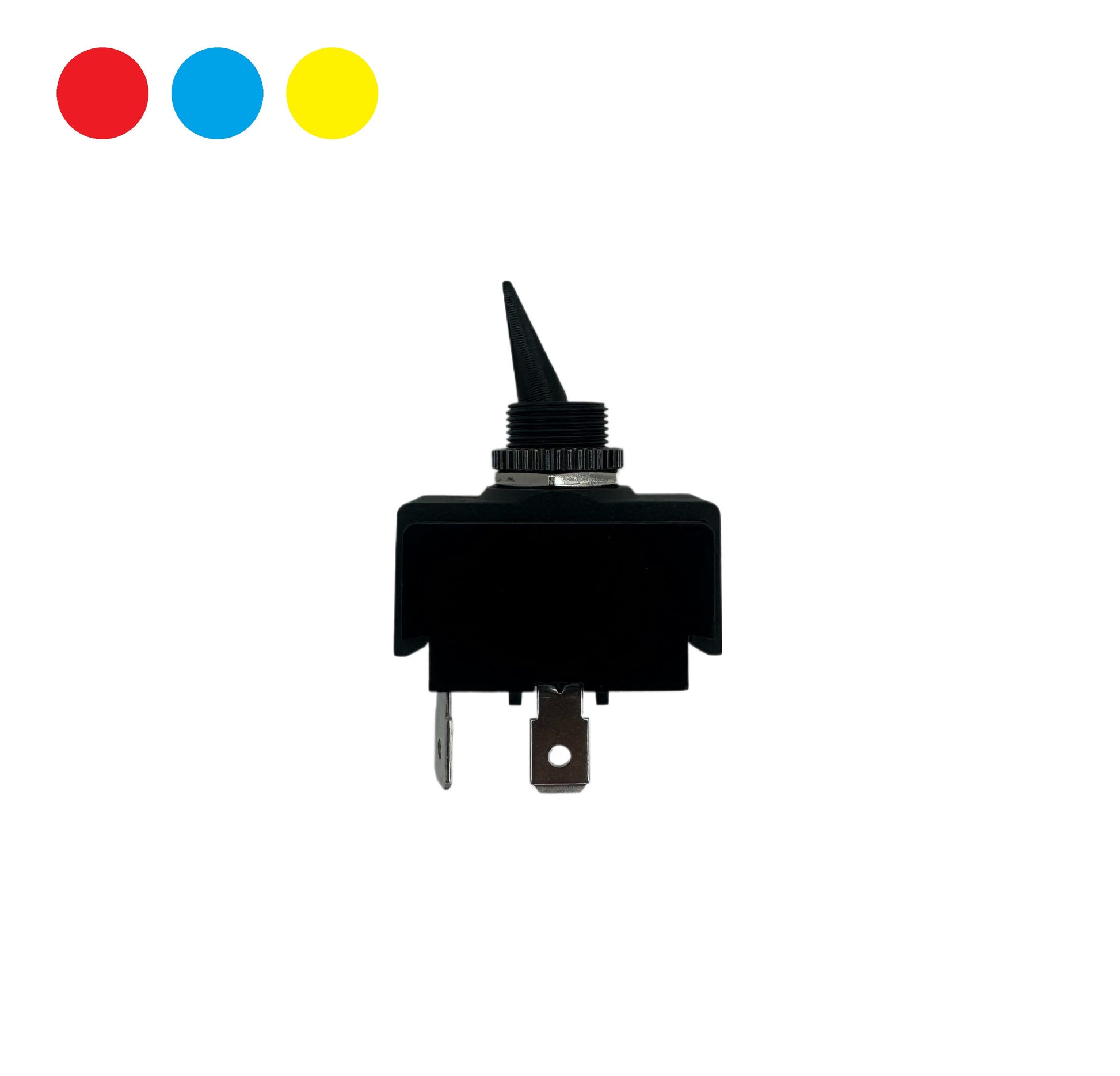

On-Off SPST Marine Toggle w/ Blade Terminals

On-Off SPST marine toggle switch with brass blade terminals and a black nylon wedge handle. It latches ON or OFF and stays where you put it. Rated 10A @ 277V AC and 20A @ 125V AC. The nylon frame and handle can't rust, exposed hardware is nickel-plated brass, and the switch is double insulated with an internal O-ring to keep out moisture and dust. Black phenolic case, UL 94V-1 flame rating.

Use it for: marine panels, trucks, buses, recreation equipment and industrial controls in damp or dusty locations, within its AC ratings.

How it is wired: SPST (single pole, single throw): one circuit, switched on or off. Connect with 0.250" (1/4") female quick disconnects; fully insulated versions cover the bare tab. Mounting hole: 1/2" (0.500"). Always check that the rating covers your load, and fuse the circuit to protect the wire.

Same action and circuit in other styles: On-Off SPST Medium Duty Toggle with Inlaid Screw Terminals, On-Off SPST Heavy Duty Toggle with Blade Terminals, On-Off SPST Marine Plastic Duckbill Toggle with Blade Terminals, On-Off SPST Red Illuminated Duckbill Marine Toggle with Blade Terminals.
