On-Off SPST Die Cast Toggle w/ Colored Boots & Screw Terminals

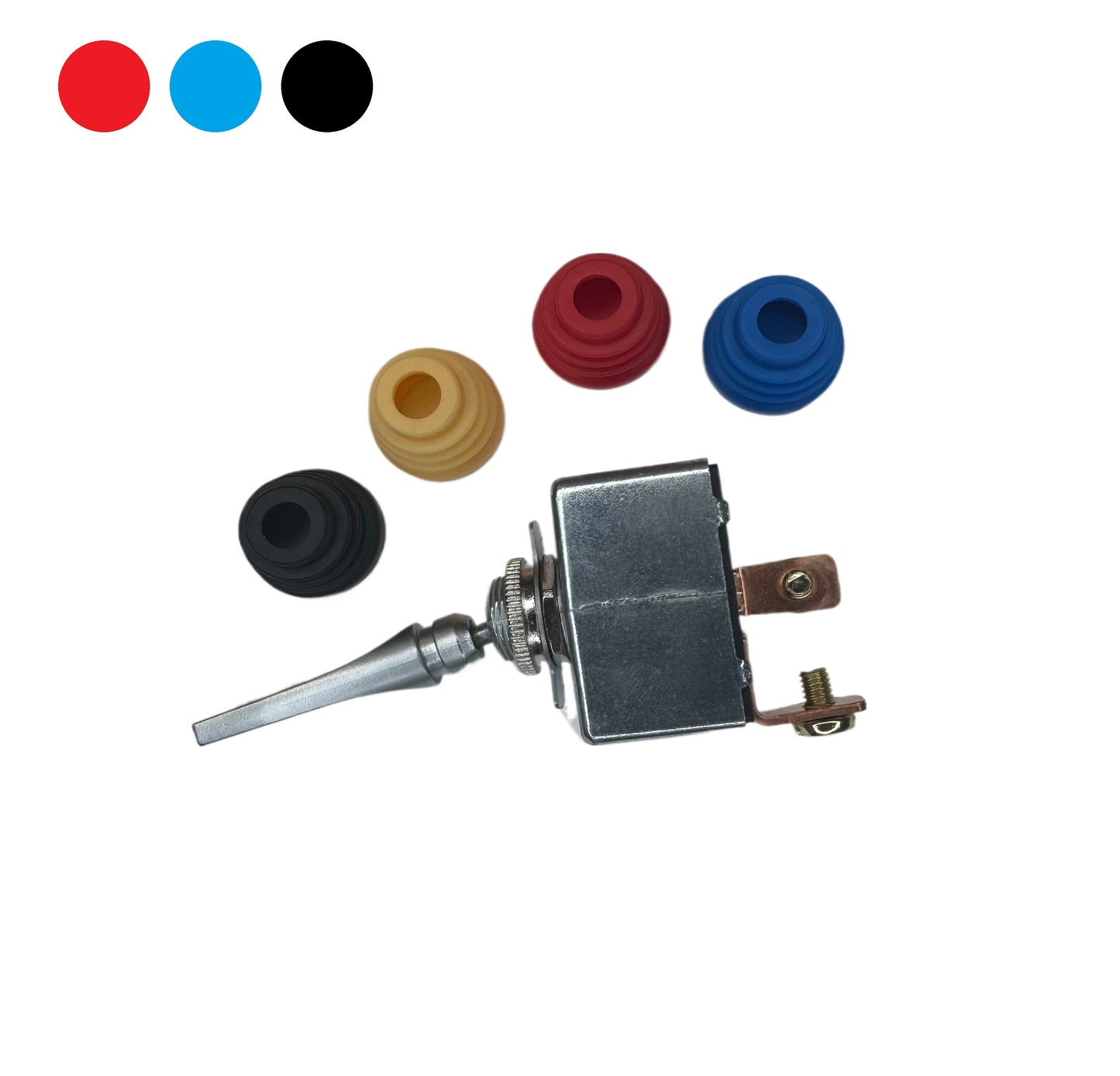

On-Off SPST Die Cast Toggle with Colored Boots & Screw Terminals. This SPST switch latches ON or OFF and stays where you put it. Rated 50 amps, with a die cast housing, silver plated contacts and heavy copper screw terminals. Four interchangeable boots (black, blue, red and yellow) are included so you can color-code each switch. Life cycle: 50,000 electrical and 100,000 mechanical operations.

Use it for: high-current lights, fans, pumps and other accessories that just need ON and OFF, on panels where color-coded switches make each circuit easy to find.

How it is wired: SPST (single pole, single throw): one circuit, switched on or off. Connect with ring terminals or spade terminals under the screws. Mounting hole: 1/2" (0.500"). Always check that the rating covers your load, and fuse the circuit to protect the wire.

Same action and circuit in other styles: On-Off SPST Medium Duty Toggle with Inlaid Screw Terminals, On-Off SPST Heavy Duty Toggle with Blade Terminals, On-Off SPST Marine Plastic Duckbill Toggle with Blade Terminals, On-Off SPST Red Illuminated Duckbill Marine Toggle with Blade Terminals.
