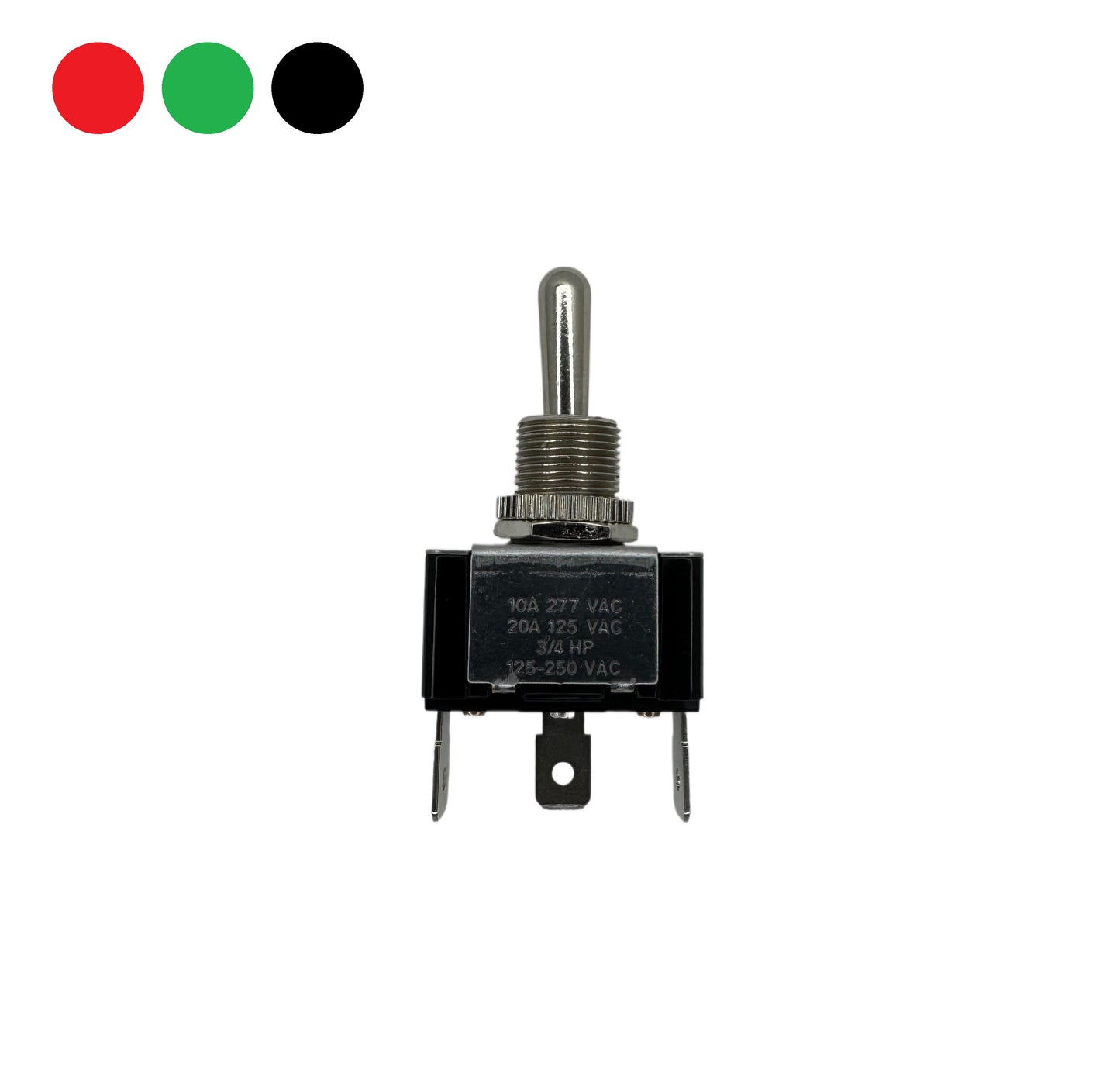

(On)-Off-(On) SPDT Heavy Duty Toggle w/ Blade Terminals

(On)-Off-(On) SPDT heavy duty toggle switch with flat brass terminals. It is momentary in both directions: ON only while held either way, springing back to center OFF. Rated 10A @ 277V AC, 20A @ 125V AC and 21A @ 14V DC; motor load 3/4 HP @ 125-250V AC. Steel frame with zinc chromate support, nickel-plated brass external parts and a black phenolic case (UL 94V-1 flame rating).

Use it for: jog, inch and up/down motor controls — lifts, hoists, actuators and dump or tarp controls — where the load must stop when the handle is released.

How it is wired: SPDT (single pole, double throw): one input routed to either of two outputs, momentary both ways. Connect with 0.250" (1/4") female quick disconnects; fully insulated versions cover the bare tab. Mounting hole: 1/2" (0.500"). Always check that the rating covers your load, and fuse the circuit to protect the wire.

Same action and circuit in other styles: (On)-Off-(On) SPDT Marine Toggle with Blade Terminals, (On)-Off-(On) SPDT Heavy Duty Toggle with Screw Terminals.
