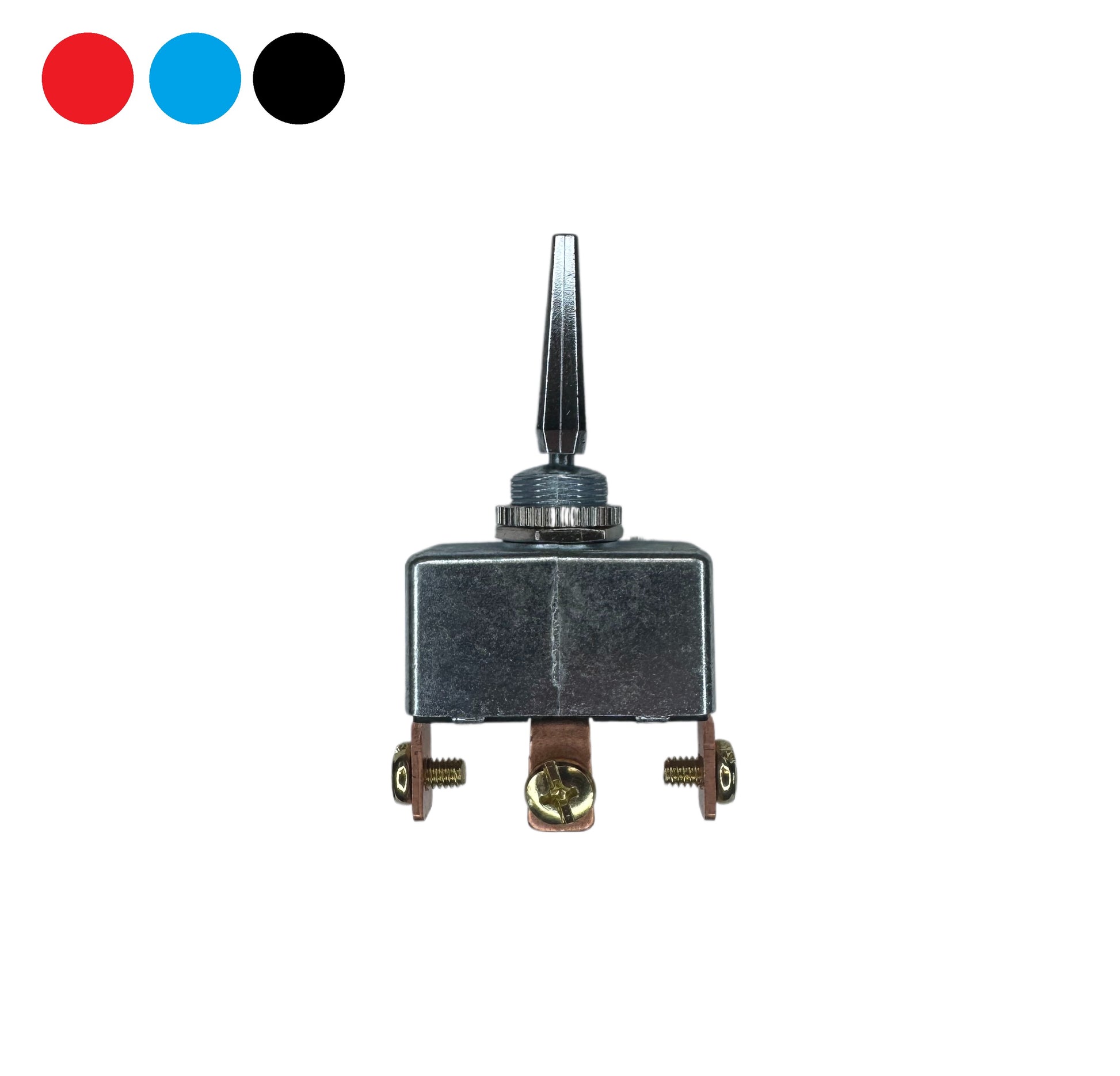

On-Off-On SPDT Heavy Duty Die Cast Chrome Toggle w/ Screw Terminals

On-Off-On SPDT heavy duty toggle switch with a die cast body, chrome plated handle and copper screw terminals. It latches in three positions: ON, center OFF, and ON. Rated 50A @ 12V DC. Life cycle: 50,000 electrical and 100,000 mechanical operations.

Use it for: high-current 12V DC circuits that switch between two loads with an OFF in between — two light sets, two-speed fans and pumps — on trucks, boats and equipment, including damp locations.

How it is wired: SPDT (single pole, double throw): one input routed to either of two outputs, with a center OFF. Connect with ring terminals or spade terminals under the screws. Mounting hole: 1/2" (0.500"). Always check that the rating covers your load, and fuse the circuit to protect the wire.

Same action and circuit in other styles: On-Off-On SPDT Heavy Duty Toggle with Screw Terminals, On-Off-On SPDT Marine Toggle with Blade Terminals, On-Off-On SPDT Heavy Duty Toggle with Blade Terminals.
