Home Products Nylon Fully Insulated Male Disconnect 16-14GA 0.250"

Order Any Quantity

No Order Minimum

In-Stock Items Ship Same Day

Quality Guaranteed

Nylon Fully Insulated Male Disconnect 16-14GA 0.250" - main product image
Nylon Fully Insulated Male Disconnect 16-14GA 0.250" - view 2
Nylon Fully Insulated Male Disconnect 16-14GA 0.250" - main product image
Nylon Fully Insulated Male Disconnect 16-14GA 0.250" - view 2

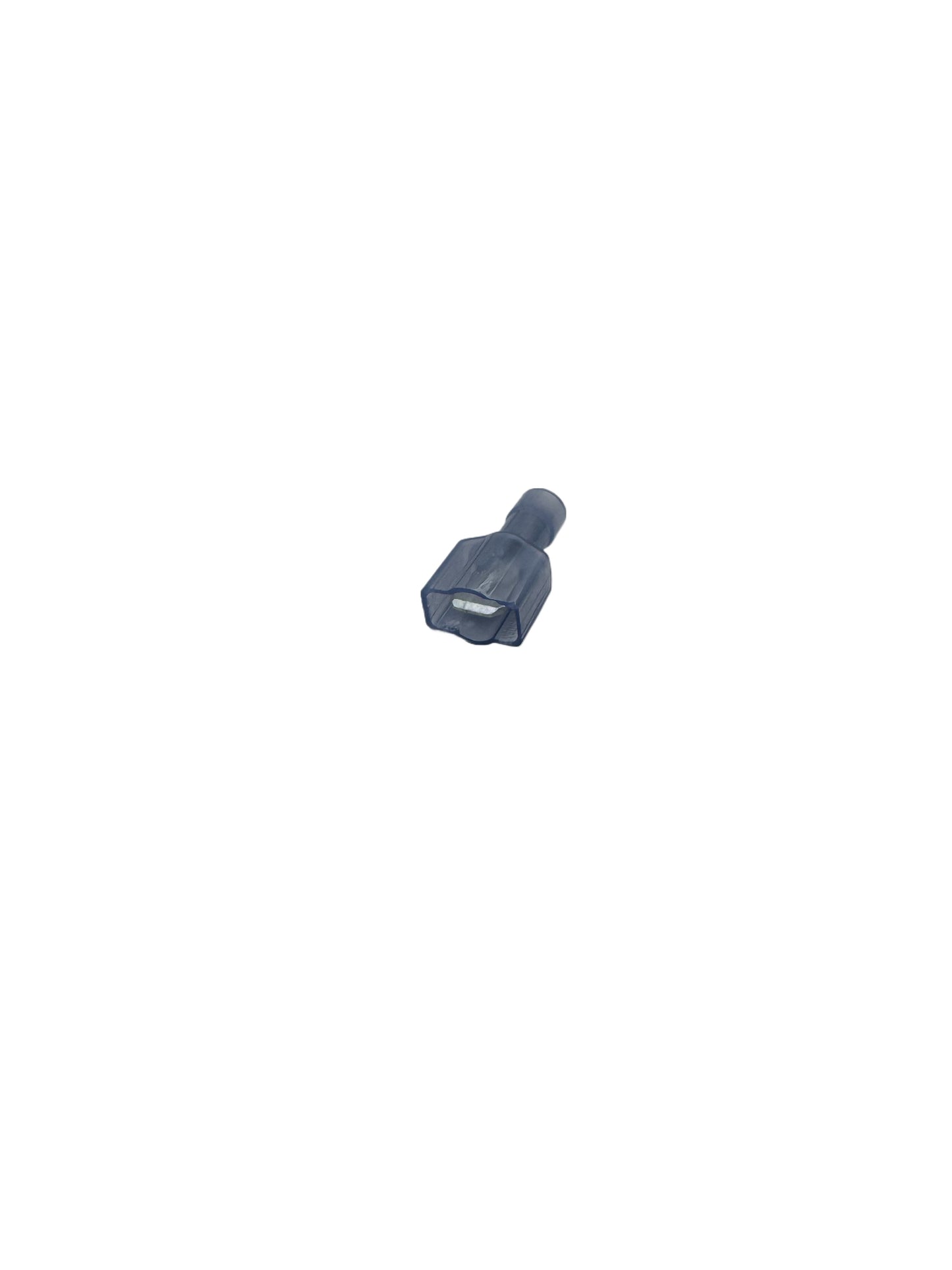

Nylon Fully Insulated Male Disconnect 16-14GA 0.250"

B514MC

$0.09

| /

Male quick disconnect for 16–14 AWG stranded copper wire with a 0.250" tab. A fully insulated nylon sleeve covers the metal, so nothing bare is exposed once the connection is made. Rated 600V, -40°C to 105°C. Made in USA.

Use it for: lighting, horns, fans, switches, relays and appliance and HVAC controls where exposed metal could short against nearby parts. 0.250" is the most common tab size — used on switches, relays, speakers, appliances and automotive components.

Getting the right size: match the barrel to the wire gauge and the tab to the receptacle it plugs into. It mates with a 0.250" female disconnect, such as our Nylon Fully Insulated Female Disconnect 16-14GA 0.250". Other wire gauges: 22–18 AWG · 12–10 AWG. Same size, different construction: high temp (900°F), heat shrink fully insulated (waterproof), non-insulated, vinyl, nylon, heat shrink (waterproof).

Priced per piece — order any quantity. See all quick disconnects.

  • Wire Gauge Range: 16-14 AWG Stranded Copper Wire
  • Connector Type: Fully Insulated Male Disconnect
  • Tab Size: 0.250"
  • Insulation Material: Nylon
  • Terminal Material: Pure copper with tin plating
  • Temperature Rating: -40°C to 105°C (-40°F to 221°F)
  • Voltage Rating: 600V
  • MADE IN USA

• Automotive Dashboard & Instrument Panels - Connect gauges, indicator lights, switches, and control modules where frequent disconnection for maintenance or troubleshooting is needed without cutting wires.

• Marine Electronics & Navigation Equipment - Wire depth finders, GPS units, radios, and control panels in boats where modular connections allow easy equipment removal for winter storage or repairs.

• RV & Trailer Interior Systems - Connect lighting fixtures, control switches, and appliances where quick-disconnect capability simplifies maintenance and seasonal setup or breakdown.

• Motorcycle & Powersports Accessories - Install heated grips, GPS units, auxiliary lights, and electronics where tool-free disconnection allows easy removal of components or winter storage.

  • Free Shipping on orders $50+
  • Orders placed before 3pm PST ship same day
  • 30-day no-hassle return
  • Buyer may be liable for return shipping charges
