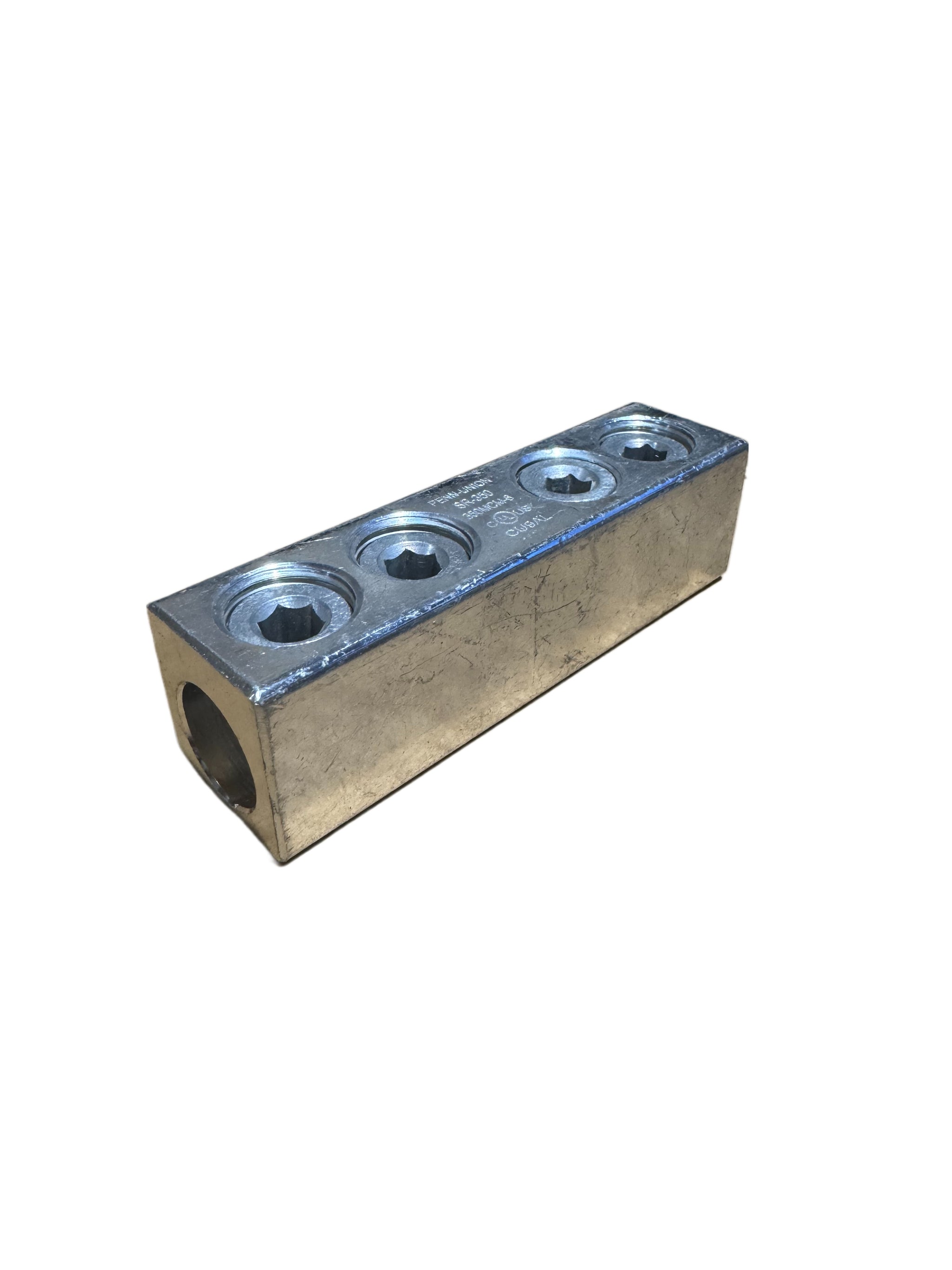

The 6GA-350MCM Aluminum Reducer is a UL Listed, mechanical compression connector designed for splicing 6 AWG to 350 kcmil conductors at up to 600V and 90°C. Made from electro-tin plated high-strength aluminum with plated steel set screws, it measures 4.19" L × 1.19" H × 1.13" W with a 5/16" hex size.
• Wire Range: 6 AWG - 350 kcmil
• Voltage Rating: 600V
• Temperature Rating: 90°C (194°F) max
• Material: High-strength aluminum alloy extrusion
• Plating: Electro-tin plated for corrosion resistance
• Hardware: Plated steel set screws
• Dimensions: 4.19" L × 1.19" H × 1.13" W
• Hex Size: 5/16"
• Connection Type: Mechanical compression
• Certifications: UL Listed, RoHS Compliant
• Service Entrance & Feeder Splicing - Join large aluminum or copper conductors in main service panels and subpanel feeders.
• Utility & Overhead Line Connections - Splice or reduce conductor sizes in outdoor power distribution and utility pole installations.
• Industrial Power Distribution - Connect heavy gauge conductors in manufacturing facilities, data centers, and commercial electrical systems.
• Solar & Renewable Energy Systems - Transition between different conductor sizes in photovoltaic arrays and battery bank connections.
UL Listed for US and Canada
RoHS Compliant
