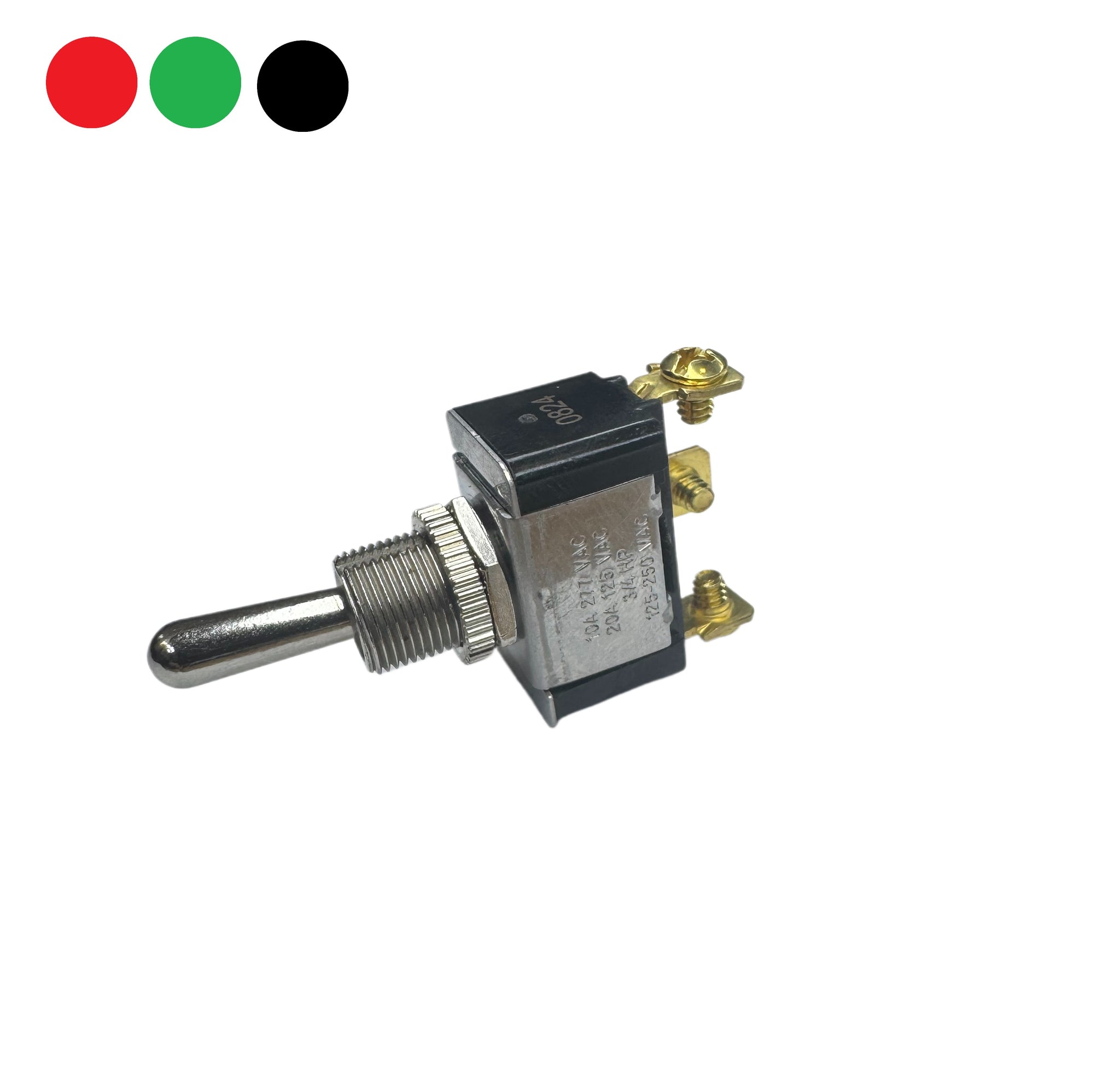

On-Off-(On) SPDT Heavy Duty Toggle w/ Screw Terminals
$5.99
| /
This heavy-duty SPDT toggle switch features an ON-OFF-(ON) latching action with a momentary third position, rated for 20A at 125V AC and 10A at 277V AC. It has a metal bat handle, brass screw terminals, and bright nickel-plated brass contacts, designed for mounting in a 0.500" hole.
• Circuit Configuration: SPDT (Single Pole Double Throw)
• Switch Action: ON-OFF-(ON) - Latching ON-OFF with momentary (ON) in third position
• Voltage/Current Rating: 20A @ 125V AC, 10A @ 277V AC
• Motor Load Rating: 3/4 HP @ 125-250V AC
• Actuator: Metal bat handle
• Terminal Type: Brass screw terminals
• Contact Material: Brass with bright nickel plating
• Mounting Hole Diameter: 0.500" (1/2")
• Heavy Equipment & Machinery Control - Control motors, hydraulic systems, and equipment functions in construction machinery, farm equipment, and industrial applications where the large metal bat handle provides easy operation even with gloves and the three-position switching offers flexible control options.
• Marine & Commercial Vehicle Systems - Switch power to auxiliary equipment, winches, and accessory circuits in boats, trucks, and buses where the bat handle design allows quick operation in challenging conditions and the momentary third position provides temporary activation capability.
• Industrial Control Panels - Control equipment modes, motor functions, and system operations in manufacturing facilities where the ergonomic bat handle reduces operator fatigue during frequent switching and the heavy-duty construction ensures long service life.
• Agricultural Equipment & Farm Machinery - Operate implements, hydraulic controls, and equipment functions on tractors and farm equipment where the metal bat handle withstands harsh environments and the three-position switching provides versatile control for different operational modes.
