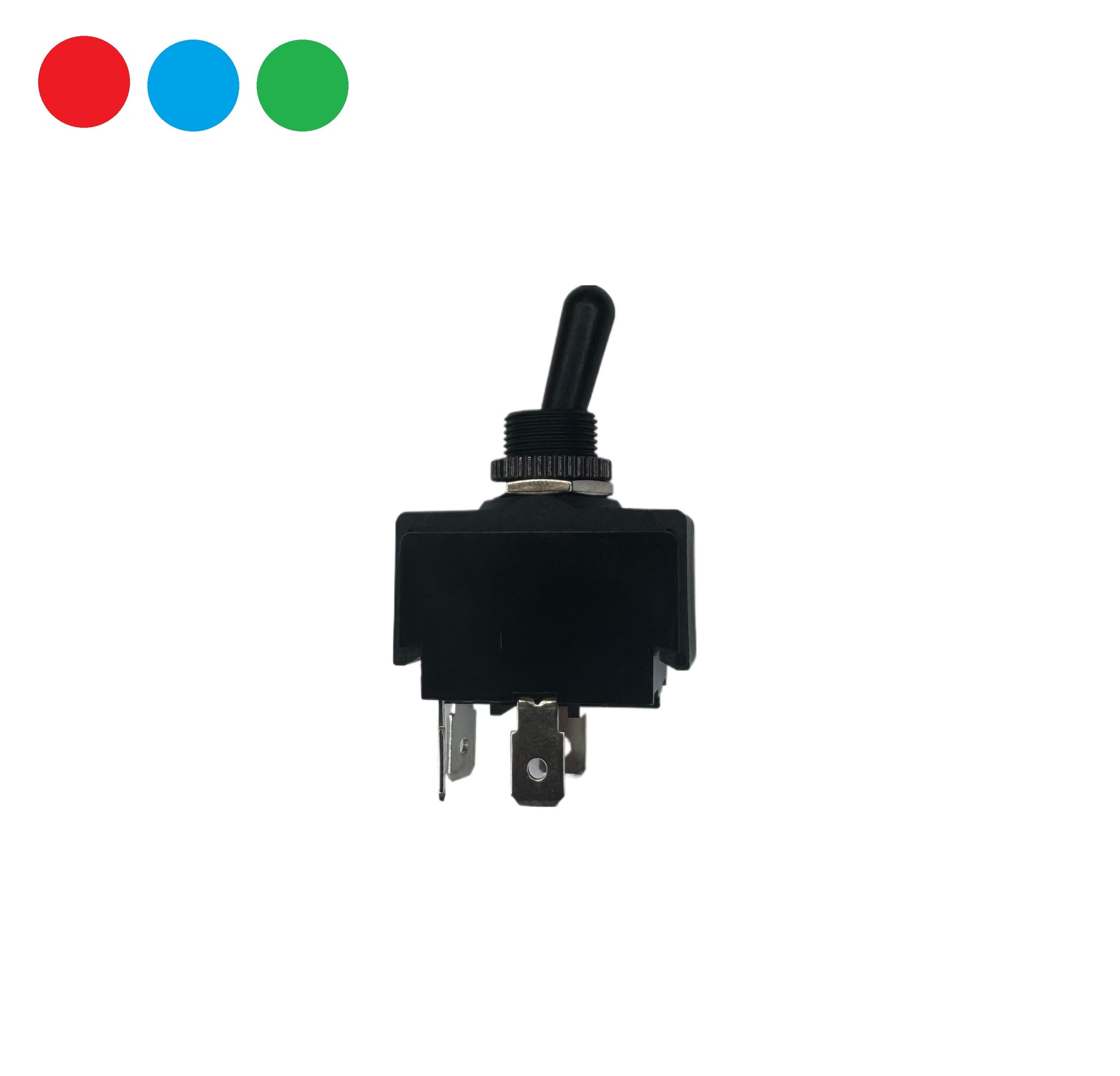

This On-Off DPST toggle switch features 1/4" blade terminals and is rated for 10A at 277V AC, 20A at 125V AC, and 21A at 14V DC, with a motor load capacity of 1-1/2 HP at 125-250V AC. Constructed with a black nylon frame, brass terminals, and a black phenolic plastic case rated UL 94V-1, it includes an internal O-ring for moisture and dust resistance.
• Circuit Configuration: DPST (Double Pole Single Throw)
• Switch Action: ON-OFF
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (double pole)
• Motor Load Rating: 1-1/2 HP @ 125-250V AC (double pole)
• Terminal Type: 1/4" blade terminals
• Frame Material: Black nylon
• External Components: Brass terminals, internal O ring for moisture and dust resistance
• Case Material: Black phenolic plastic (UL 94 flame class 94V-1 rated)
• Mounting Hole Diameter: 1/2" (0.500")
• Marine Electrical Systems - Ideal for boat control panels, bilge pump circuits, navigation light switching, and cabin electrical systems where moisture resistance and reliable control are essential for safe marine operations.
• Automotive and Heavy-Duty Vehicle Controls - Perfect for truck cab accessories, bus interior systems, recreational vehicle electrical panels, and off-road equipment where weather-resistant switching and double pole isolation are required for controlling multiple circuits simultaneously.
• Industrial Control Panels - Excellent for manufacturing equipment, process control systems, machinery operation panels, and production line controls requiring switching with center-off capability for enhanced safety and operational flexibility.
• Outdoor and Weather-Exposed Equipment - Well-suited for agricultural machinery, construction equipment, outdoor lighting systems, and recreation equipment where double insulation and O-ring sealing protect against environmental moisture, dust, and harsh operating conditions.
• UL 94 Flame Class 94V-2 (case material flammability rating)
