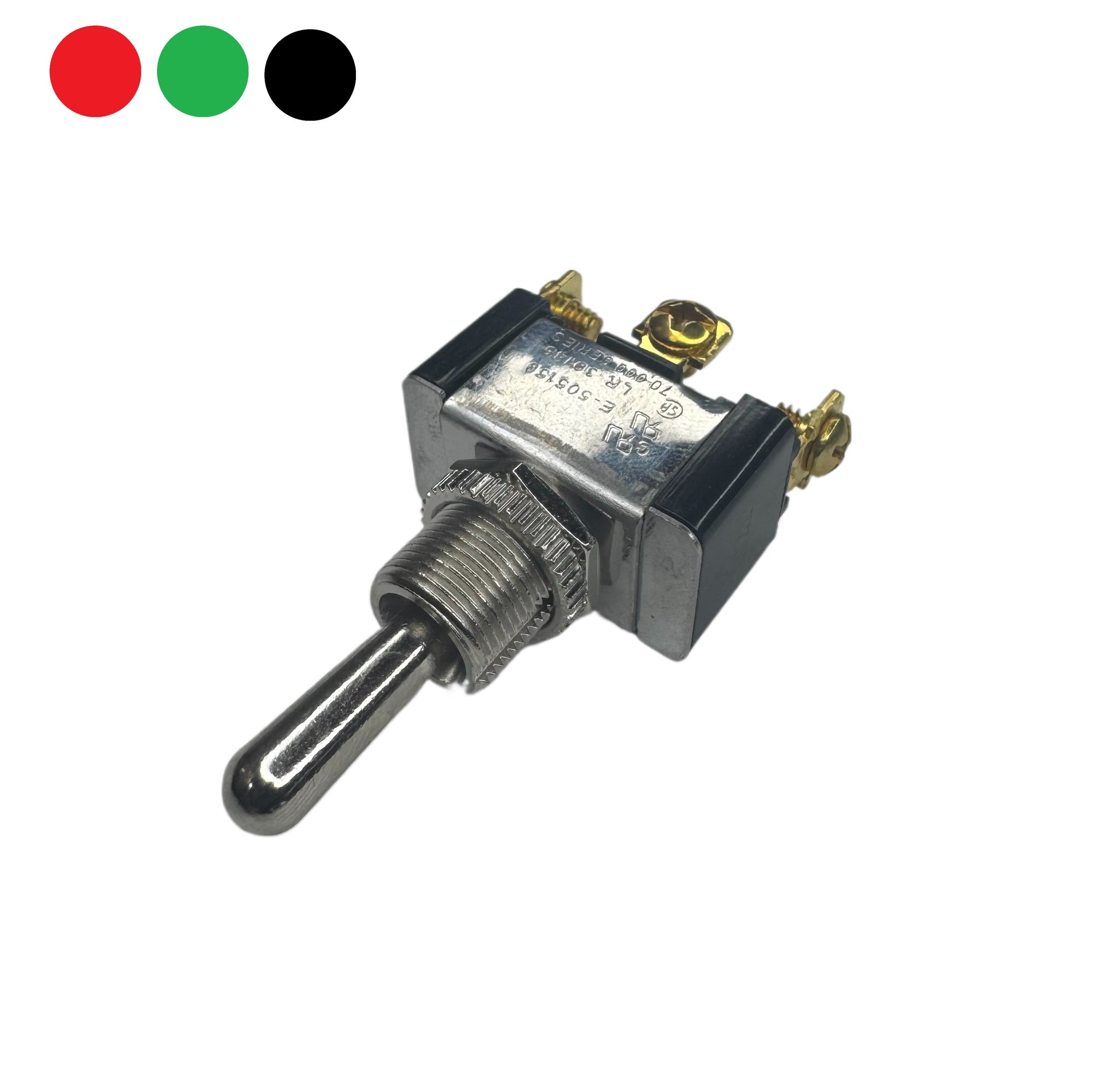

On-Off-On SPDT Heavy Duty Toggle w/ Screw Terminals
$4.29
| /
This On-Off-On SPDT heavy-duty toggle switch features a 10A @ 277V AC and 20A @ 125V AC rating with brass screw terminals and a steel frame with zinc chromate support. It offers latching in all three positions and a 1/2" mounting hole diameter, housed in black phenolic plastic rated UL 94V-1.
• Circuit Configuration: SPDT (Single Pole Double Throw)
• Switch Action: ON-OFF-ON (latching in all three positions)
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (single pole)
• Motor Load Rating: 3/4 HP @ 125-250V AC (single pole)
• Terminal Type: Brass screw terminals
• Frame Material: Steel with zinc chromate support
• External Components: Brass with bright nickel plating
• Case Material: Black phenolic plastic (UL 94 flame class 94V-1 rated)
• Mounting Hole Diameter: 1/2" (0.500")
• Automotive Accessory & Lighting Control - Select between two different lighting circuits or accessory functions in vehicles where three-position switching allows choice between front/rear work lights, high/low fan speeds, or two separate accessory circuits with center OFF position.
• Marine Navigation & Equipment Selection - Switch between port/starboard navigation lights, dual bilge pumps, or multiple equipment circuits on boats where three-position control allows selection between two independent systems with center OFF for complete shutdown.
• Industrial Equipment Mode Selection - Control machinery operating modes, conveyor direction selection, or equipment function switching in manufacturing facilities where operators need to choose between two different operational modes with a neutral OFF position between them.
• Truck & Bus Auxiliary Systems - Select between interior/exterior lighting, dual battery banks, or multiple accessory circuits in commercial vehicles where three-position switching provides flexible control over independent electrical systems with heavy-duty screw terminals ensuring reliable connections in high-vibration environments.
• UL 94 Flame Class 94V-2 (case material flammability rating)
