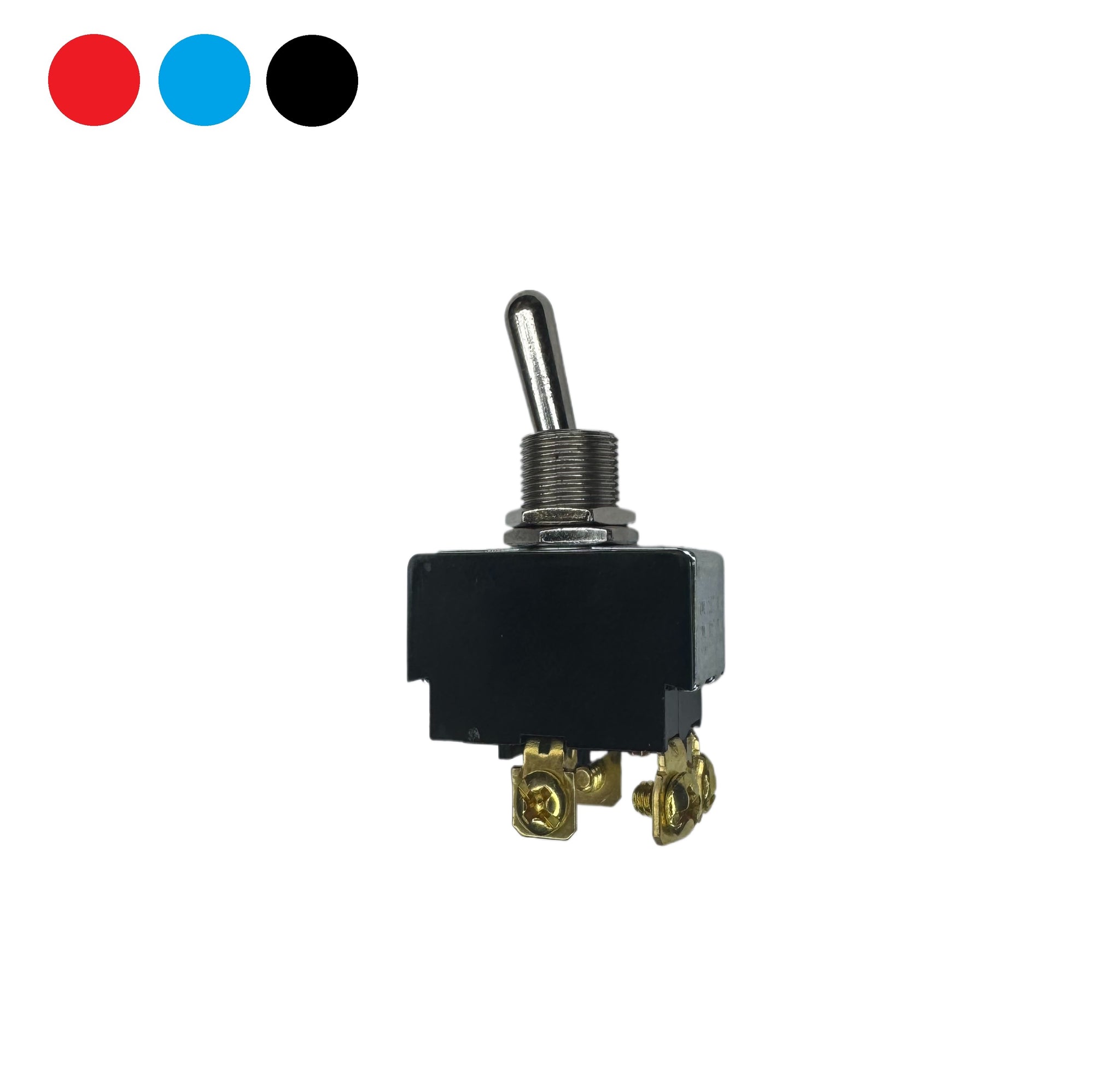

(On)-Off DPST Heavy Duty Toggle w/ Screw Terminals
$5.99
| /
This heavy-duty DPST toggle switch features a momentary (ON)-OFF action with spring return, rated for 10A at 277V AC, 20A at 125V AC, and 21A at 14V DC, and includes brass screw terminals for secure connections. It is constructed with a steel frame, nickel-plated brass components, and a black phenolic plastic case rated UL 94V-1.
• Circuit Configuration: DPST (Double Pole Single Throw)
• Switch Action: (ON)-OFF - Momentary ON, spring returns to OFF when released
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC, 21A @ 14V DC (double pole)
• Motor Load Rating: 1-1/2 HP @ 125-250V AC (double pole)
• Terminal Type: Brass screw terminals
• Frame Material: Steel with zinc chromate support
• External Components: Brass with bright nickel plating
• Case Material: Black phenolic plastic (UL 94 flame class 94V-1 rated)
• Mounting Hole Diameter: 1/2" (0.500")
• Industrial Equipment Testing & Jog Control - Momentarily activate machinery jog functions, test equipment operation, and control industrial processes where the switch automatically returns to OFF when released, preventing continuous operation and ensuring operator safety.
• Marine Horn & Signal Systems - Activate boat horns, fog signals, and audible warning devices where momentary activation is required and double-pole switching ensures complete circuit isolation when OFF, meeting marine safety requirements.
• Heavy Equipment Momentary Functions - Control hydraulic test modes, equipment positioning, and diagnostic functions in trucks, buses, and construction equipment where spring-return action provides precise control and prevents accidental extended operation.
• Automotive Test & Diagnostic Circuits - Activate test modes, diagnostic functions, and temporary circuits in vehicles and equipment where double-pole momentary switching allows simultaneous control of two separate circuits with automatic return to OFF.
• UL 94 Flame Class 94V-2 (case material flammability rating)
