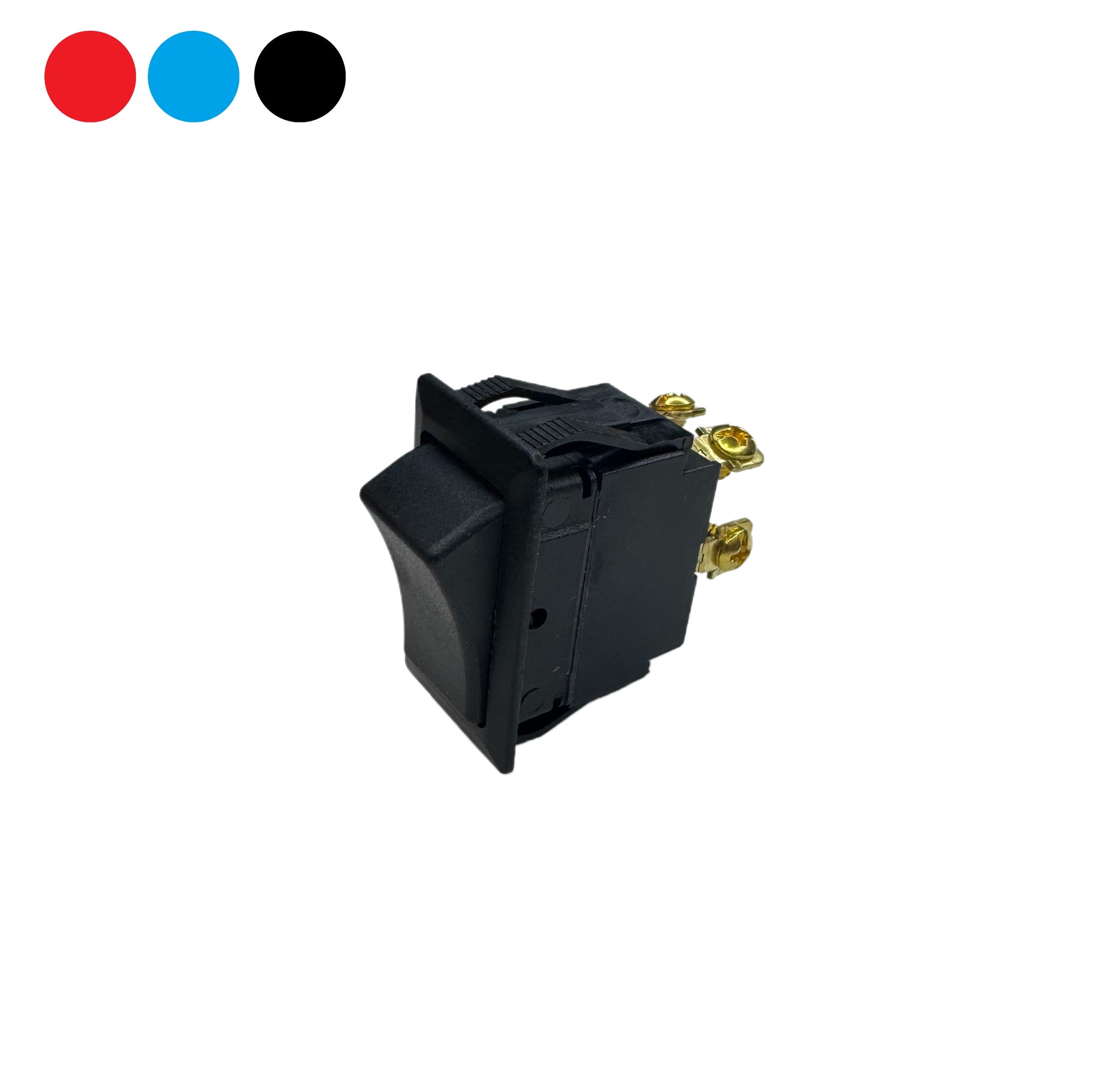

On-Off-On SPDT Heavy Duty Rocker w/ Screw Terminals
SW461
$6.79
| /
This On-Off-On SPDT rocker switch features a heavy-duty black glass-filled nylon frame and brass screw terminals, rated for 10A at 277V AC and 20A at 125V AC with a 3/4 HP motor load capacity. It includes a molded elastomer gasket for moisture and dust resistance and mounts in a 0.830" x 1.450" hole.
• Circuit Configuration: SPDT (Single Pole Double Throw)
• Switch Action: ON-OFF-ON
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC
• Motor Load Rating: 3/4 HP @ 125-250V AC
• Terminal Type: Brass screw terminals (heavy-duty)
• Frame Material: Black glass-filled nylon
• Rocker Material: Black glass-filled nylon
• Case Material: Black (UL 94 flame class 94V-2 rated)
• Gasket: Molded elastomer for moisture and dust resistance
• Mounting Hole Size: 0.830" (+/- 0.015) x 1.450" (+/- 0.005)
• Construction: Heavy-duty, moisture and dust resistant
• Automotive Accessory & Lighting Control - Select between two different lighting circuits or accessory functions in vehicles where three-position switching allows choice between front/rear work lights, high/low fan speeds, or two separate accessory circuits with center OFF position.
• Marine Navigation & Equipment Selection - Switch between port/starboard navigation lights, dual bilge pumps, or multiple equipment circuits on boats where three-position control allows selection between two independent systems with center OFF for complete shutdown.
• Industrial Equipment Mode Selection - Control machinery operating modes, conveyor direction selection, or equipment function switching in industrial settings where operators need to choose between two different operational modes with a neutral OFF position between them.
• RV & Commercial Vehicle Systems - Select between interior/exterior lighting, dual battery banks, or multiple accessory circuits in recreational vehicles and commercial trucks where three-position switching provides flexible control over independent electrical systems.
• UL 94 Flame Class 94V-2 (case material flammability rating)
