(On)-Off-(On) DPDT Heavy Duty Rocker w/ Blade Terminals
SW421
$6.78
| /

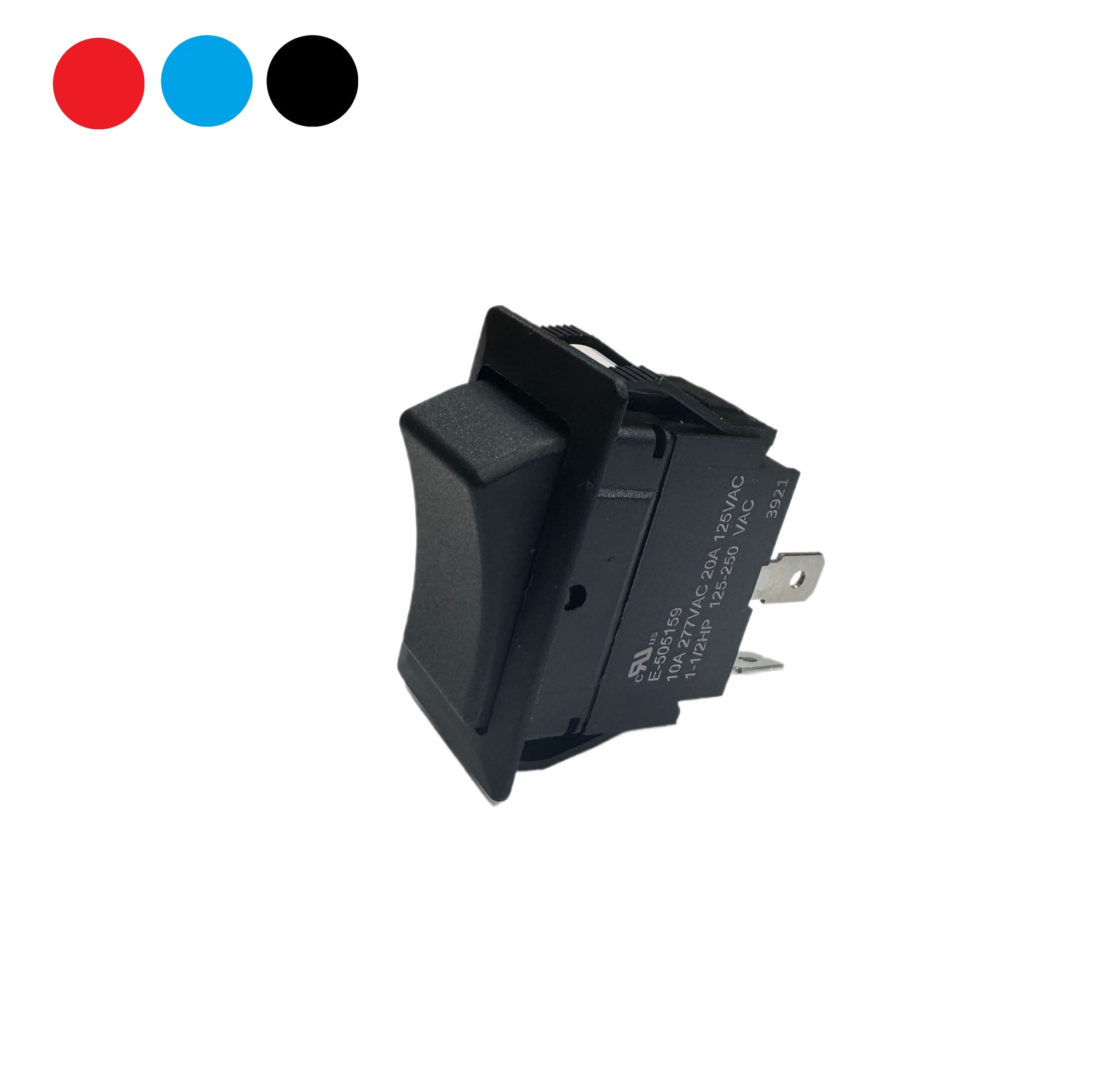

This (On)-Off-(On) DPDT rocker switch features heavy-duty flat brass blade terminals and a black glass-filled nylon frame, rated for 10A at 277V AC and 20A at 125V AC with a 1.5 HP motor load capacity. It provides momentary ON operation in both directions with spring return to center OFF and is constructed for moisture and dust resistance.
• Circuit Configuration: DPDT (Double Pole Double Throw)
• Switch Action: (ON)-OFF-(ON) - Momentary ON in both directions, spring returns to center OFF position
• Voltage/Current Rating: 10A @ 277V AC, 20A @ 125V AC
• Motor Load Rating: 1.5 HP @ 125-250V AC (double pole)
• Terminal Type: Heavy-duty flat brass terminals
• Frame Material: Black glass-filled nylon
• Rocker Material: Black glass-filled nylon
• Case Material: Black (UL 94 flame class 94V-2 rated)
• Gasket: Molded elastomer for moisture and dust resistance
• Mounting Hole Size: 0.830" (+/- 0.015) x 1.450" (+/- 0.005)
• Illumination: Non-illuminated
• Construction: Heavy-duty, moisture and dust resistant
• Power Window & Sunroof Controls - Control automotive power windows, sunroofs, and convertible tops where momentary activation in both directions operates motors forward and reverse, with automatic spring return to center OFF preventing accidental operation and motor damage.
• Marine Windlass & Trim Tab Systems - Operate anchor windlasses, trim tabs, and adjustable outdrives in boats where momentary up/down control allows precise positioning with automatic return to OFF, preventing motor burnout and battery drain when released.
• Industrial Conveyor & Material Handling - Control reversible conveyor belts, hoists, and material handling equipment where operators need momentary jog control in both forward and reverse directions for precise load positioning and equipment alignment.
• RV Slide-Out & Leveling Systems - Operate RV slide-out rooms, leveling jacks, and awning motors where momentary extend/retract control provides precise positioning with spring return to center OFF ensuring motors stop automatically when the operator releases the switch.
• UL 94 Flame Class 94V-2 (case material flammability rating)
