• Wire Gauge Range: 22-18 AWG stranded copper only

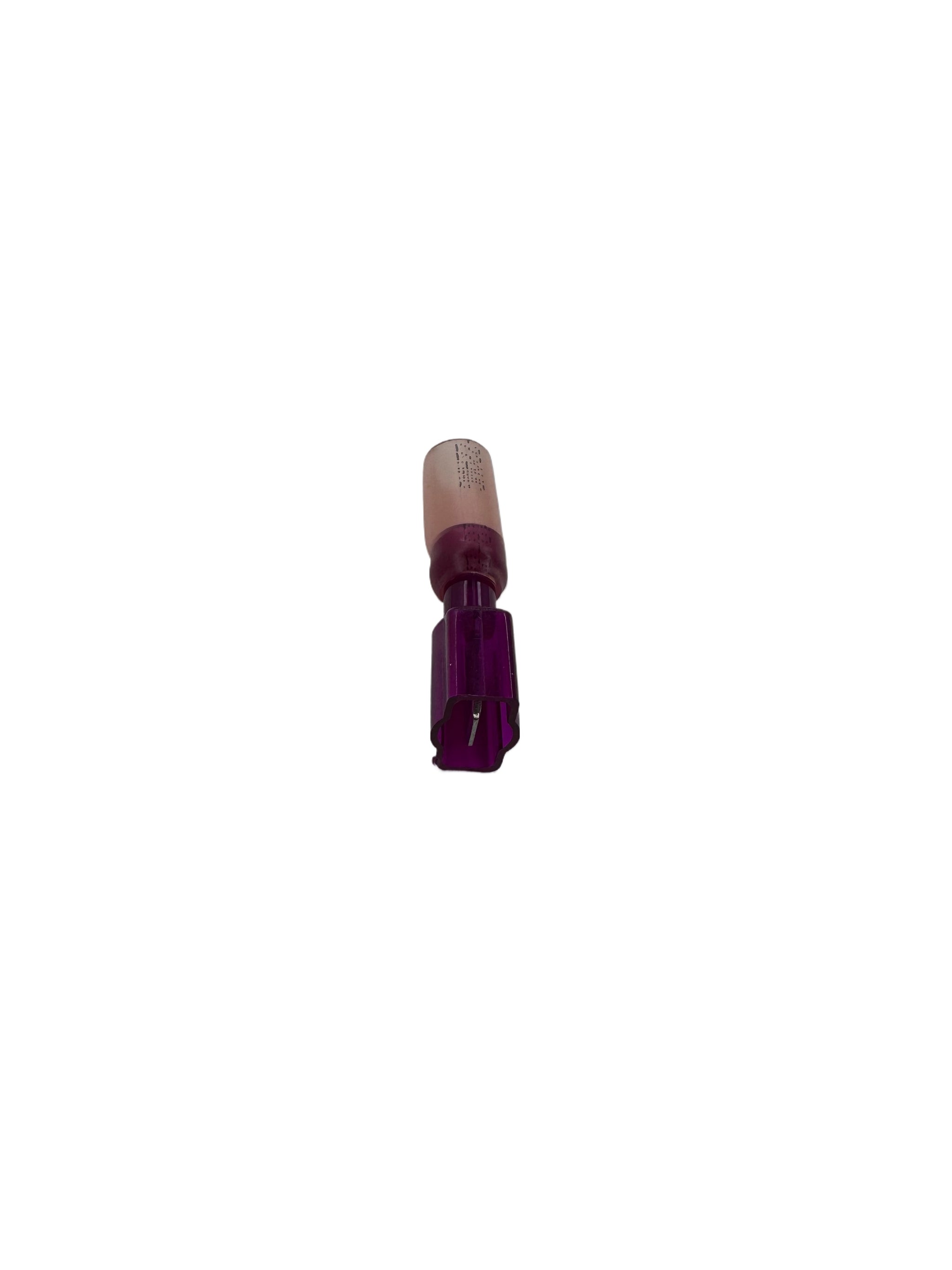

• Connector Type: Fully insulated male quick-disconnect
• Tab Size: 0.250" (1/4")
• Insulation Material: Dual-wall heat shrink with adhesive lining (3M Type MW polyolefin)
• Temperature Rating: -55°C to 125°C (-67°F to 257°F)
• Waterproof: Yes (when properly heat-shrunk)
• Terminal Material: Pure copper with tin plating
• Barrel Construction: Brazed barrel for uniform crimping
• Tubing Type: Translucent semi-rigid polyolefin with adhesive lining
• Installation: Crimp wire, then apply heat gun to shrink and seal
• Seal Type: Adhesive-activated watertight seal
• Made in USA
• Marine Electrical Systems - Connect windlass motors, bilge pumps, navigation lights, and electronics in boats where saltwater exposure requires waterproof connections that can still be disconnected for maintenance or winter storage.
• Trailer & RV Exterior Wiring - Wire running lights, brake lights, and exterior accessories exposed to road spray, weather, and moisture where waterproof quick-disconnect capability allows easy trailer unhitching or component replacement.
• Outdoor Power Equipment - Connect charging systems, electric start motors, and accessories on lawn tractors, generators, and outdoor machinery where weather exposure and seasonal storage require waterproof modular connections.
• Underground Irrigation & Lighting - Wire valve solenoids, pump controls, and landscape lighting in buried applications where waterproof connections prevent corrosion while allowing access for repairs or seasonal adjustments.
