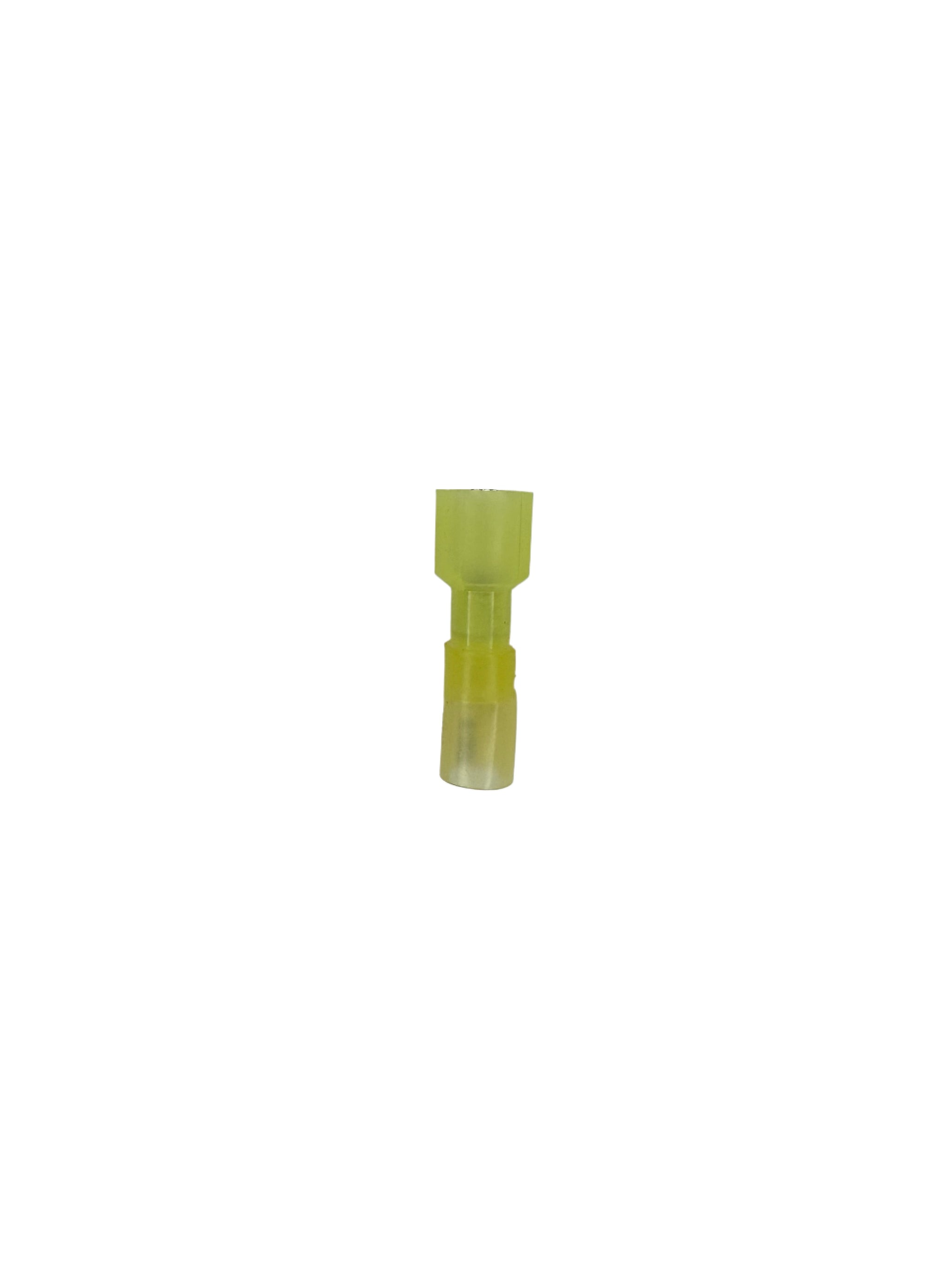

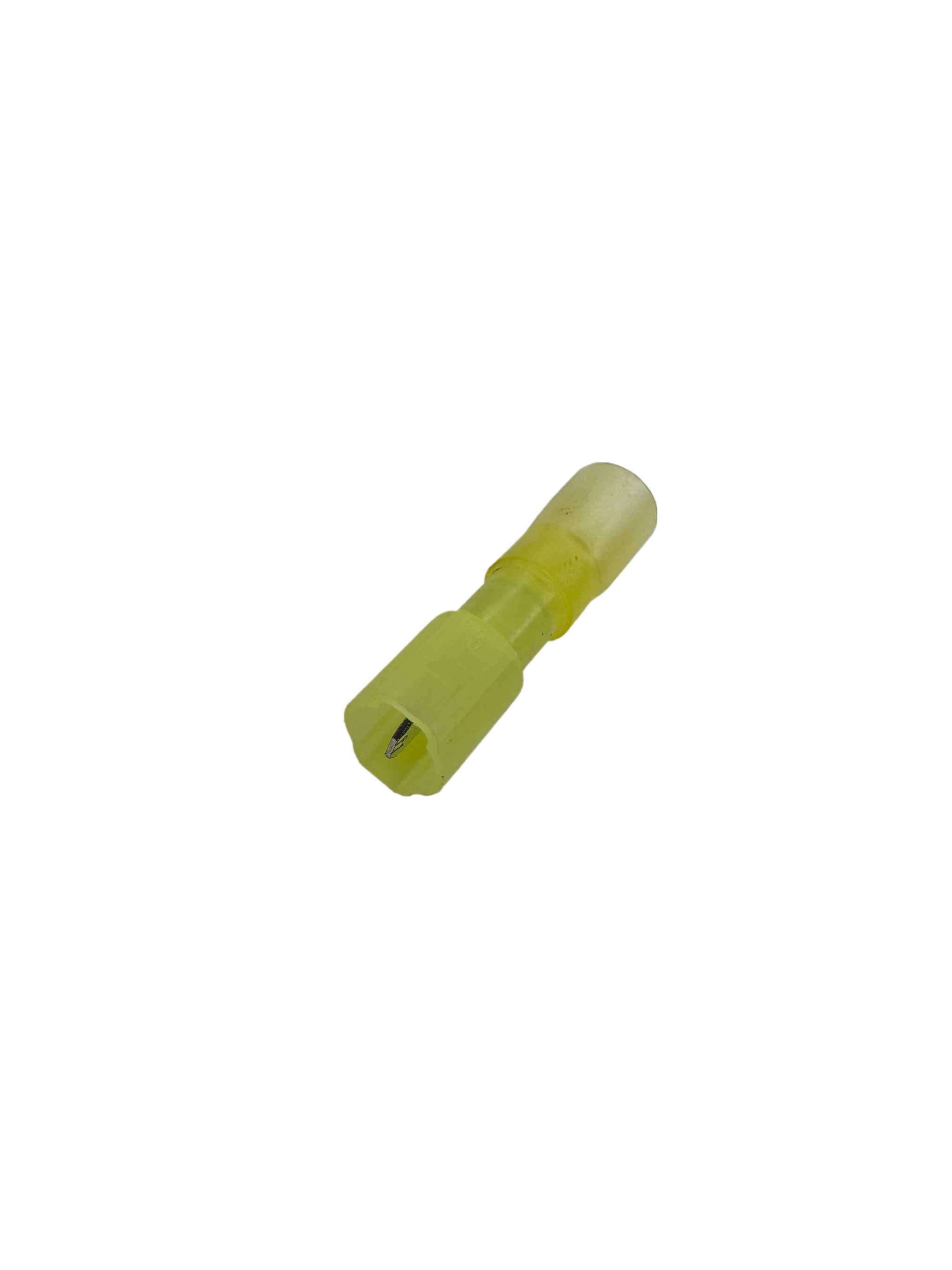

Heat Shrink Fully Insulated Male Disconnect 12-10GA 0.250"

CHS14MC

$0.49

| /

This fully insulated male quick-disconnect terminal accommodates 12-10 AWG stranded copper wire and features a 0.250" tab size, pure copper tin-plated terminal, and a brazed barrel for uniform crimping. It includes dual-wall heat shrink insulation with adhesive lining, providing a waterproof seal rated for -55°C to 125°C when properly heat-shrunk.

Wire Gauge Range: 12-10 AWG stranded copper only
Connector Type: Fully insulated male quick-disconnect
Tab Size: 0.250" (1/4")
Insulation Material: Dual-wall heat shrink with adhesive lining (3M Type MW polyolefin)
Temperature Rating: -55°C to 125°C (-67°F to 257°F)
Waterproof: Yes (when properly heat-shrunk)
Terminal Material: Pure copper with tin plating
Barrel Construction: Brazed barrel for uniform crimping
Tubing Type: Translucent semi-rigid polyolefin with adhesive lining
Installation: Crimp wire, then apply heat gun to shrink and seal
Seal Type: Adhesive-activated watertight seal
Made in USA

Marine Electrical Systems - Connect windlass motors, bilge pumps, navigation lights, and electronics in boats where saltwater exposure requires waterproof connections that can still be disconnected for maintenance or winter storage.

Trailer & RV Exterior Wiring - Wire running lights, brake lights, and exterior accessories exposed to road spray, weather, and moisture where waterproof quick-disconnect capability allows easy trailer unhitching or component replacement.

Outdoor Power Equipment - Connect charging systems, electric start motors, and accessories on lawn tractors, generators, and outdoor machinery where weather exposure and seasonal storage require waterproof modular connections.

Underground Irrigation & Lighting - Wire valve solenoids, pump controls, and landscape lighting in buried applications where waterproof connections prevent corrosion while allowing access for repairs or seasonal adjustments.
