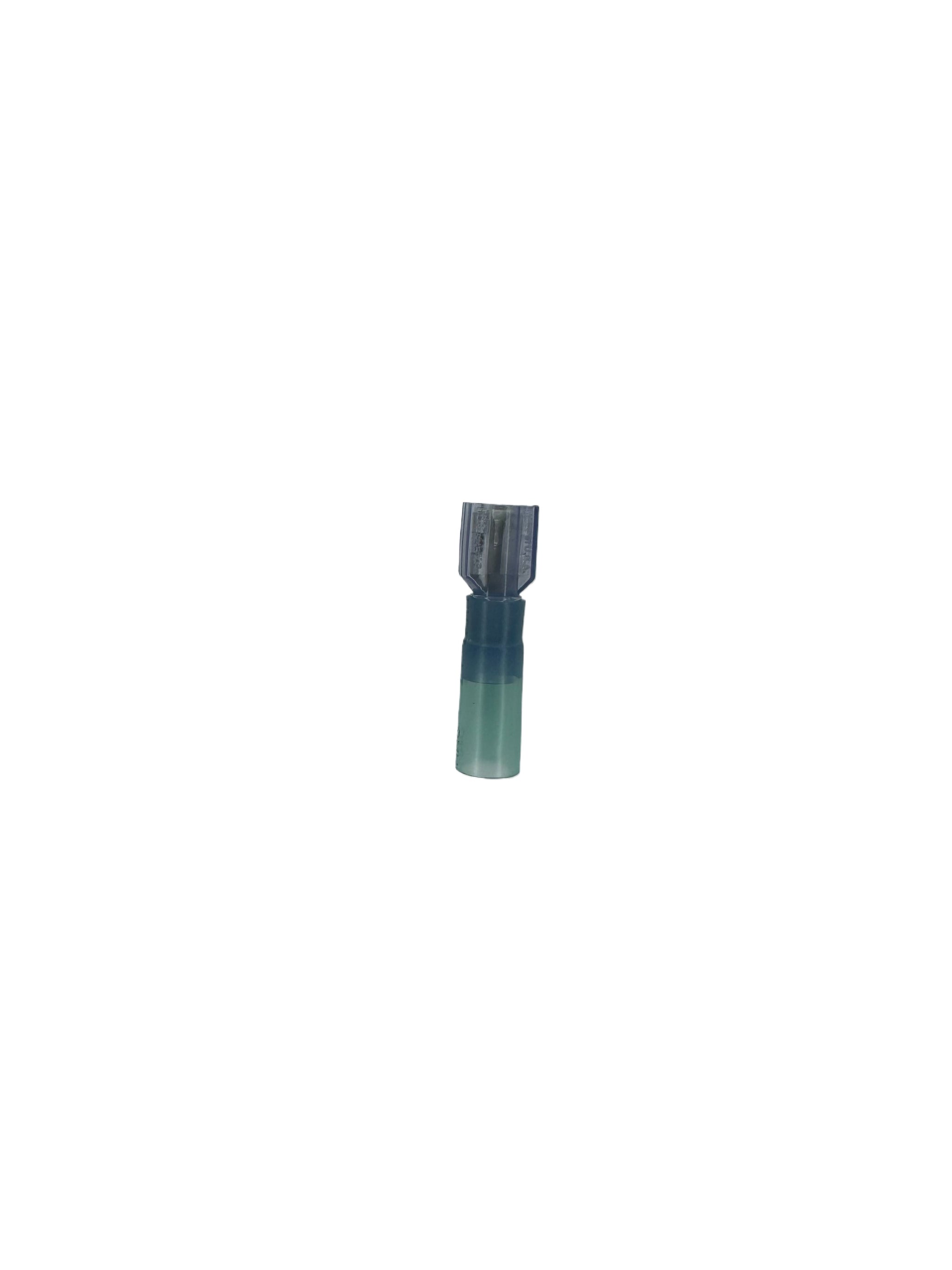

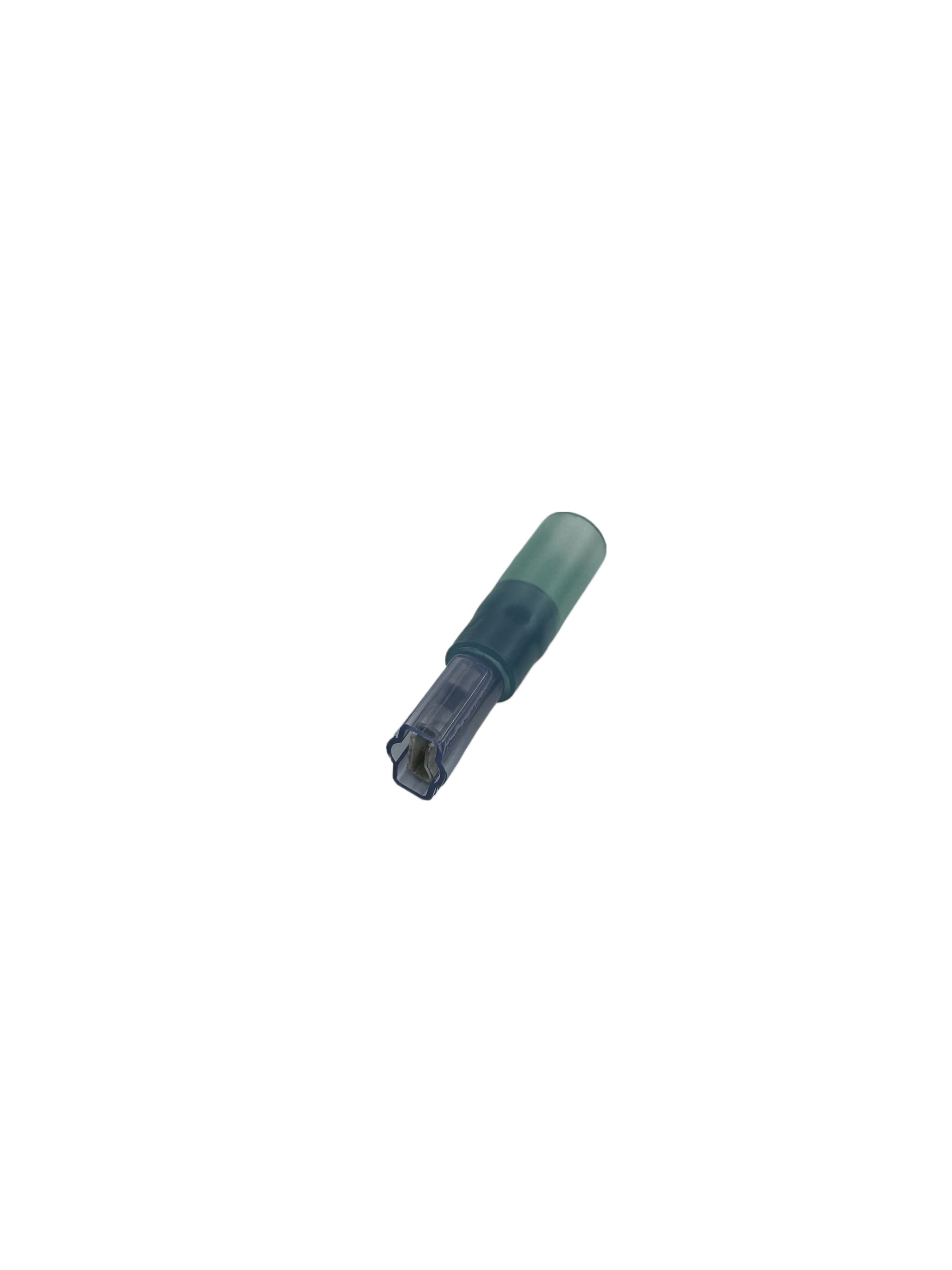

Heat Shrink Fully Insulated Female Disconnect 16-14GA 0.250"

BHS14FC

$0.26

| /

This fully insulated female quick disconnect is designed for 16-14 AWG stranded copper wire and features a 0.250" tab size with a brazed pure copper, tin-plated terminal. It includes a dual-wall heat shrink polyolefin insulation with adhesive lining for a watertight seal when properly heat-shrunk, rated for temperatures from -55°C to 125°C.

Wire Gauge Range: 16-14 AWG stranded copper only
Connector Type: Fully insulated female quick-disconnect
Tab Size: 0.250" (1/4")
Insulation Material: Dual-wall heat shrink with adhesive lining (3M Type MW polyolefin)
Temperature Rating: -55°C to 125°C (-67°F to 257°F)
Waterproof: Yes (when properly heat-shrunk)
Terminal Material: Pure copper with tin plating
Barrel Construction: Brazed barrel for uniform crimping
Tubing Type: Translucent semi-rigid polyolefin with adhesive lining
Installation: Crimp wire, then apply heat gun to shrink and seal
Seal Type: Adhesive-activated watertight seal
Made in USA

Marine Electrical Systems - Connect windlass motors, bilge pumps, navigation lights, and electronics in boats where saltwater exposure requires waterproof connections that can still be disconnected for maintenance or winter storage.

Trailer & RV Exterior Wiring - Wire running lights, brake lights, and exterior accessories exposed to road spray, weather, and moisture where waterproof quick-disconnect capability allows easy trailer unhitching or component replacement.

Outdoor Power Equipment - Connect charging systems, electric start motors, and accessories on lawn tractors, generators, and outdoor machinery where weather exposure and seasonal storage require waterproof modular connections.

Underground Irrigation & Lighting - Wire valve solenoids, pump controls, and landscape lighting in buried applications where waterproof connections prevent corrosion while allowing access for repairs or seasonal adjustments.
