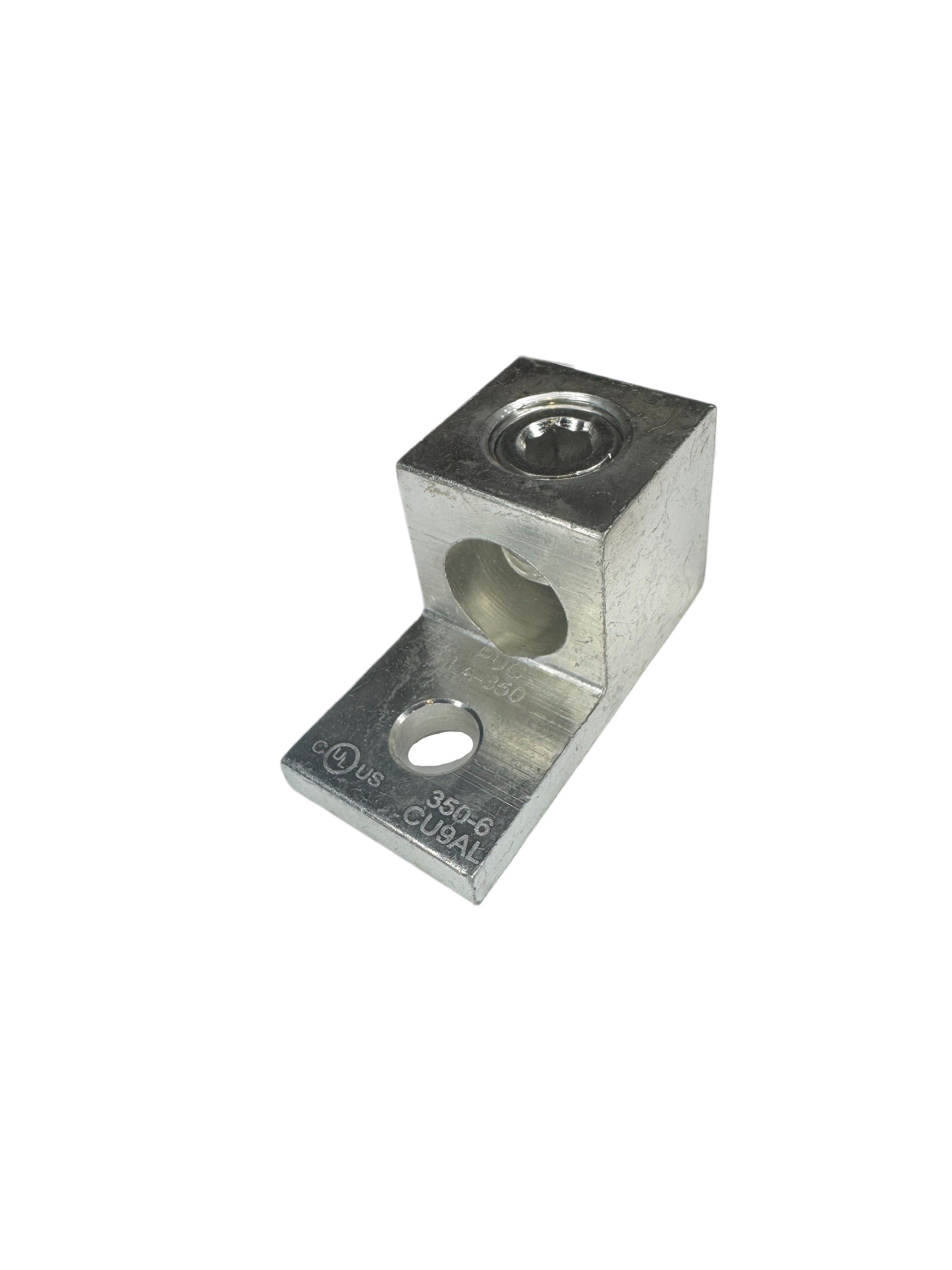

6GA-350MCM Dual Rated Mechanical Lug w/ Tin Plating
LA350-1
$4.25
| /
This mechanical lug is dual rated for copper or aluminum conductors ranging from 6 AWG to 350 kcmil, with a 600V and 90°C temperature rating. Constructed from high-strength aluminum alloy with electro-tin plating, it features a mechanical set screw connection and is UL, C-UL-us, CSA, and RoHS certified.
• Wire Range: 6 AWG - 350 kcmil (one conductor)
• Voltage Rating: 600V
• Temperature Rating: 90°C (194°F) max
• Material: High-strength aluminum alloy extrusion
• Plating: Electro-tin plated for corrosion resistance
• Conductor Type: Copper or aluminum (dual rated)
• Dimensions: 2.25" L × 1.13" W × 1.25" H
• Tongue Thickness: 0.25"
• Mounting Bolt Size: 3/8"
• Hex Size: 5/16"
• Connection Type: Mechanical set screw
• Certifications: UL Listed, C-UL-us Listed, CSA Certified, RoHS Compliant
• Panel Board & Switchgear Terminations - Secure single large conductors to bus bars and terminals in electrical panels and distribution equipment.
• Transformer & Motor Connections - Terminate feeder cables to transformers, motors, and heavy equipment where single-conductor connections are required.
• Service Entrance & Subpanel Feeds - Connect main service conductors and subpanel feeders to load centers and distribution boards.
• Industrial Machinery & Control Panels - Provide reliable termination points for power distribution in manufacturing equipment and control systems.
UL Listed
C-UL-us Listed
CSA Certified
RoHS Compliant
