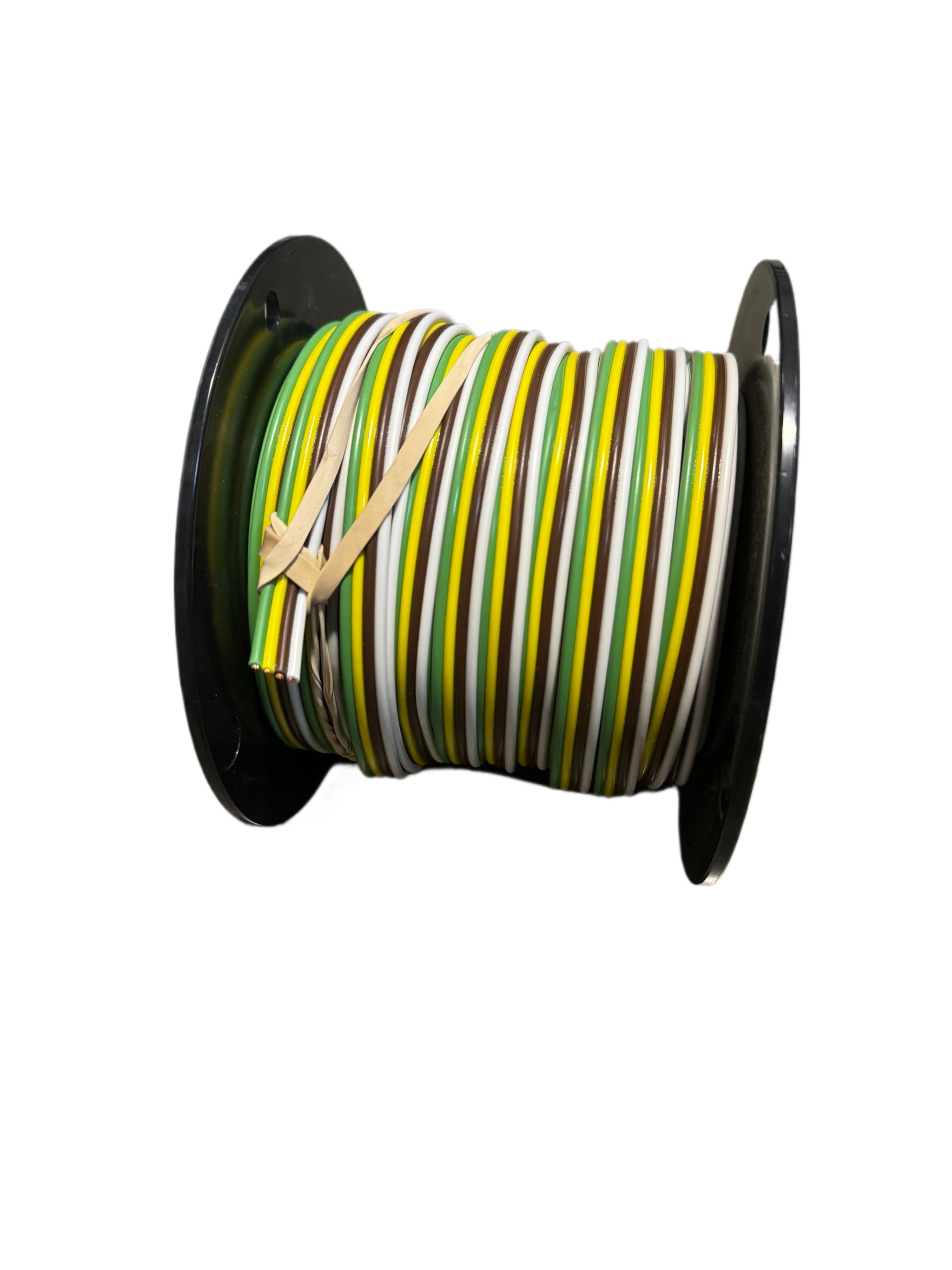

16/4 Bonded Parallel Wire is a 16 AWG, 4-conductor stranded copper wire with standard-wall PVC insulation, rated for 60V DC and 80°C. It features a side-by-side flat configuration with lightly bonded conductors in white, brown, green, and yellow, meeting SAE J1128 specifications.
• Wire Type: 4-conductor parallel bonded wire
• Gauge: 16 AWG (all 4 conductors)
• Voltage Rating: 60V DC
• Temperature Rating: 80°C (176°F)
• Insulation: Standard-wall polyvinyl chloride (PVC)
• Construction: Side-by-side flat configuration, lightly bonded
• Color Coding: White, brown, green, yellow
• Conductor Type: Stranded copper
• Standard Compliance: Meets SAE J1128 specifications
• Trailer Lighting Systems - Wire running lights, brake lights, and turn signals on utility trailers, boat trailers, and cargo trailers where the flat bonded design keeps wires organized and prevents tangling.
• Small Trailer Electrical - Provide multi-conductor wiring for small trailers and tow-behind equipment where economical wire is needed and the 60V DC rating is sufficient for automotive lighting circuits.
• RV Exterior Lighting - Connect marker lights, clearance lights, and auxiliary lighting on recreational vehicles where the color-coded conductors simplify circuit identification and troubleshooting.
• Low-Voltage Multi-Circuit Runs - Install multiple circuits in agricultural equipment, landscaping trailers, and utility applications where keeping wires together simplifies routing and the flat profile fits through tight spaces.
• Standard Compliance: Meets SAE J1128 specifications
