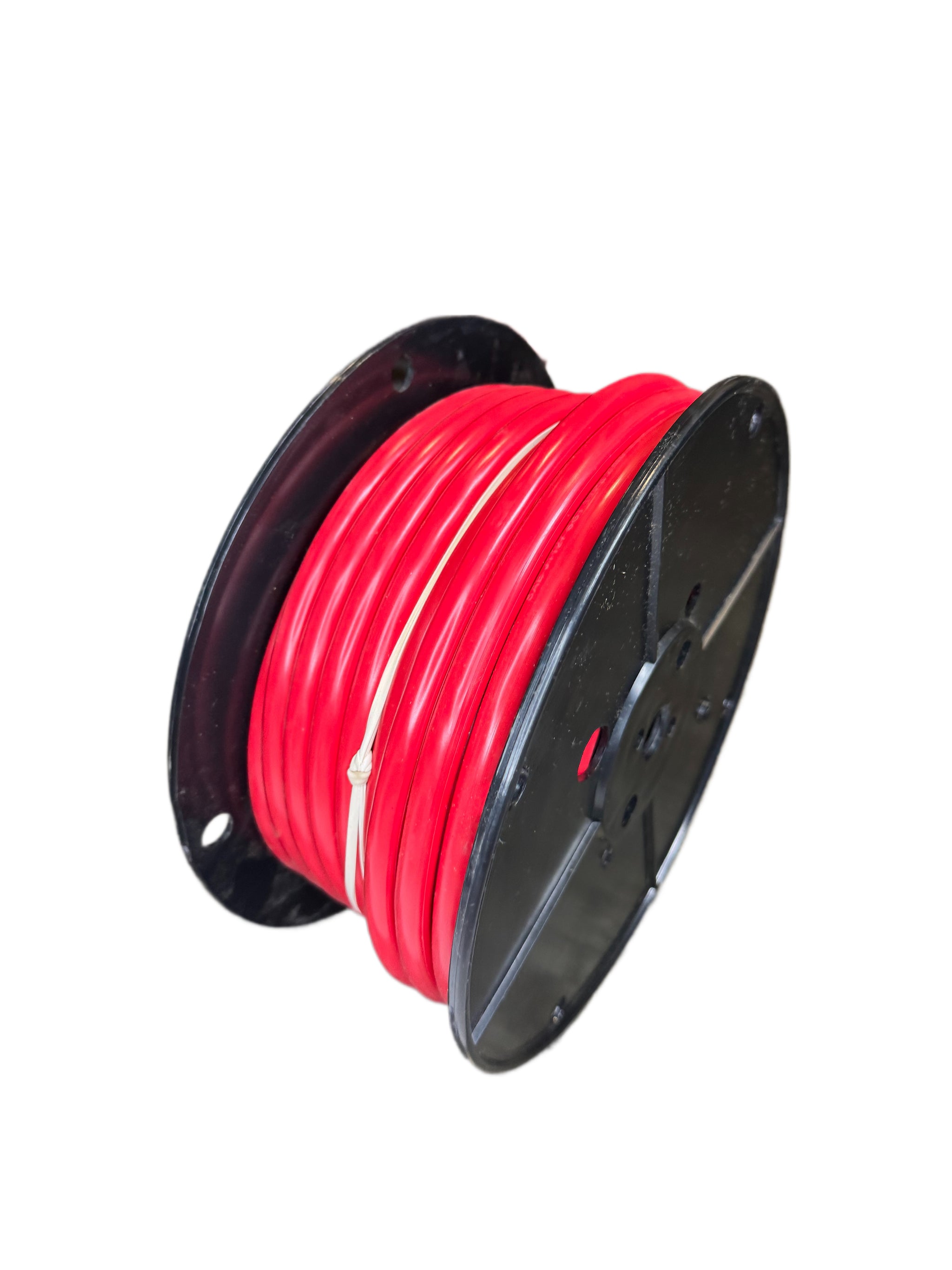

This 1 AWG red battery cable features stranded bare copper conductors with PVC insulation rated for up to 60V and operating temperatures from -50°C to 105°C. It has a nominal outer diameter of 0.490" and is designed for heavy-duty electrical connections.
• Wire Gauge: 1 AWG
• Cable Type: Starter cable / SGT cable
• Voltage Rating: 60V max
• Temperature Rating: -50°C to 105°C (-58°F to 221°F)
• Insulation Material: PVC (Polyvinyl Chloride)
• Conductor Type: Stranded copper
• Stranding: 133/22 (133 strands of 22 AWG wire)
• Nominal Outer Diameter: 0.490"
• Conductor Material: Bare copper
• Automotive Starter & Battery Cables - Connect batteries to starters, engines to ground points, and battery-to-battery connections in vehicles.
• Heavy Equipment & Diesel Engines - Wire starter motors, alternators, and ground connections in trucks, tractors, construction equipment, and diesel engines where large conductors handle high inrush currents during cold starts.
• Marine Battery Systems - Connect battery banks, windlass motors, bow thrusters, and high-current accessories in boats where the 1 AWG size handles substantial DC loads and the PVC insulation provides basic moisture resistance.
• Solar & Off-Grid Power Systems - Interconnect large battery banks, inverters, and charge controllers in photovoltaic arrays and backup power systems where heavy-gauge conductors minimize voltage drop over short runs.
RoHS Compliant
SAE J1127
SAE J378
