Introduction

In any electrical project, the quality and reliability of your connections are paramount. Wire terminals are a fundamental component of a safe and secure electrical system, but with so many types available, choosing the right one can be a daunting task. This guide will walk you through the process of selecting the appropriate wire terminals for your project and provide best practices for installation to ensure a long-lasting and dependable connection.

Understanding Wire Terminal Types

Different applications call for different types of terminals. Here's a breakdown of some of the most common types you'll find at Electrical Supply Center:

Ring Terminals

Ring terminals are one of the most secure types of terminals, as they are fastened to a stud or screw and are unlikely to disconnect. They are ideal for applications where a reliable connection is critical, such as in automotive and marine electrical systems.

Spade Terminals

Also known as fork terminals, spade terminals are easy to install and remove, as they can be slipped under a screw or stud without completely removing the fastener. They are a good choice for applications where frequent connection and disconnection may be necessary.

Quick Disconnects

Quick disconnects, or spade connectors, are used to make a temporary, yet secure, connection between two wires. They are commonly found in household appliances and automotive wiring, allowing for easy assembly and repair.

Butt Connectors

Butt connectors are used to join two wires together to create a single, longer wire. They are available in a variety of styles, including insulated and non-insulated, and are a staple in any electrician's toolkit.

Selecting the Right Terminal

Choosing the correct terminal for your application involves considering several factors:

• Wire Gauge: The terminal must be the correct size for the wire you are using. Using a terminal that is too large or too small can result in a poor connection that can overheat or fail.
• Application: Consider the environment in which the terminal will be used. For example, in a marine environment, you'll want to use terminals that are resistant to corrosion, such as tinned copper terminals with heat shrink insulation.
• Connection Type: The type of connection you need to make will determine the type of terminal you should use. For a permanent connection to a stud, a ring terminal is the best choice. For a connection that may need to be disconnected, a quick disconnect or spade terminal is more appropriate.

Best Practices for Installation

Proper installation is just as important as selecting the right terminal. Here are some tips for a secure and reliable installation:

1. Strip the Wire: Use a quality wire stripper to remove about 1/4 inch of insulation from the end of the wire. Be careful not to nick or cut any of the wire strands.
2. Crimp the Terminal: Insert the stripped wire into the barrel of the terminal and use a quality crimping tool to make a secure crimp. The crimp should be tight enough to hold the wire firmly in place, but not so tight that it damages the wire or the terminal.
3. Heat Shrink (if applicable): If you are using a heat shrink terminal, use a heat gun to shrink the tubing over the connection. This will create a moisture-proof seal that will protect the connection from corrosion.
4. Inspect the Connection: Once the terminal is installed, give it a gentle tug to ensure that it is secure. A properly crimped terminal should not pull off the wire.

Conclusion

By taking the time to select the right wire terminals and install them correctly, you can ensure that your electrical connections are safe, secure, and reliable. At Electrical Supply Center, we offer a wide variety of high-quality, American-made wire terminals to meet the needs of any project. Browse our selection of ring terminals, spade terminals, and quick disconnects to find the perfect solution for your next electrical project.

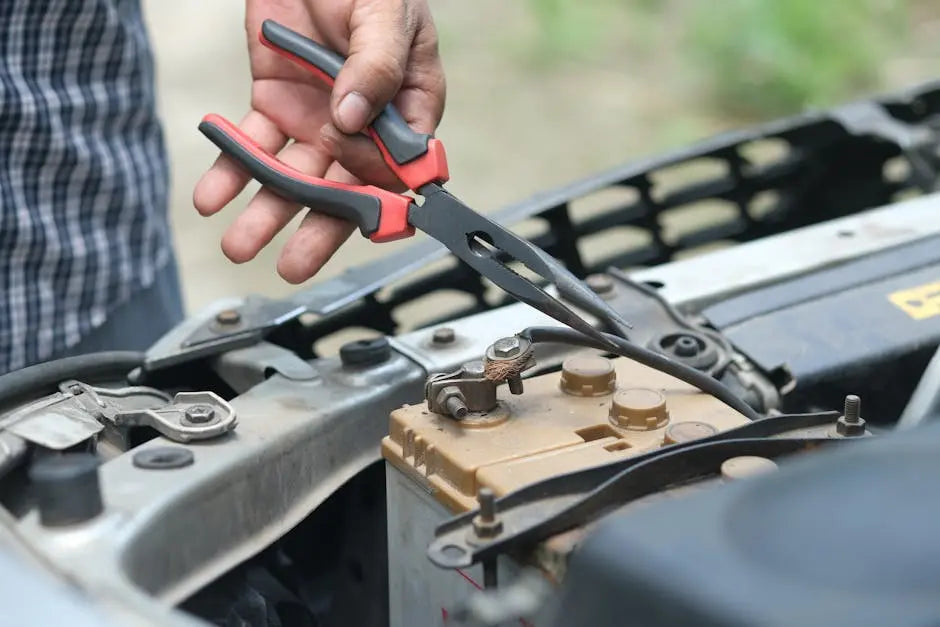

Introduction

When it comes to automotive wiring, one of the most critical decisions you'll make is choosing the correct wire gauge. The gauge of a wire refers to its thickness, and using the wrong size can lead to a range of problems, from poor performance to a potential fire hazard. This guide will walk you through everything you need to know to select the right wire gauge for your next automotive project, ensuring your electrical system is both safe and efficient.

At Electrical Supply Center, we understand the importance of using high-quality, correctly-sized wiring. That's why we offer a wide selection of automotive wire and cable to meet the demands of any project, from a simple speaker installation to a complete rewiring of a classic car.

What is Wire Gauge and Why Does it Matter?

Wire gauge is a measurement of a wire's diameter or thickness. In the United States, the standard for wire gauge is the American Wire Gauge (AWG) system. In the AWG system, a lower number indicates a thicker wire, while a higher number indicates a thinner wire. For example, a 10-gauge wire is thicker than a 16-gauge wire.

The thickness of a wire is crucial because it determines how much electrical current (amperage) it can safely carry. A wire that is too thin for the amount of current flowing through it will overheat, which can melt the insulation and create a fire risk. On the other hand, using a wire that is excessively thick is not dangerous, but it is more expensive and can be more difficult to work with.

Factors to Consider When Choosing Wire Gauge

Two primary factors determine the correct wire gauge for your application:

• Amperage (Current Draw): The first step is to determine the amperage of the component you are wiring. This information can usually be found on the device itself or in its documentation. If you're unsure, you can use a multimeter to measure the current draw.

• Length of the Wire: The longer the wire, the more resistance it will have. This resistance causes a voltage drop, which can lead to reduced performance of your electrical components. To compensate for voltage drop over long distances, you will need to use a thicker wire (a lower gauge number).

Automotive Wire Gauge Chart

To simplify the process of selecting the right wire gauge, you can use a wire gauge chart. This chart will help you find the appropriate gauge based on the amperage of your device and the length of the wire run.

How to Use the Chart:

• Find the amperage of your device in the left-hand column.
• Follow that row to the right to find the column that corresponds to the length of your wire run.
• The number in that cell is the recommended AWG wire gauge for your application.

Common Automotive Wire Gauge Sizes and Applications

While the chart is the most accurate way to determine the right wire gauge, here are some general guidelines for common automotive applications:

• 18-22 Gauge: This is a good choice for low-power applications like sensor wires, and interior lighting. Check out our selection of primary GPT wire for these applications.
• 14-16 Gauge: This is a versatile size that can be used for a wide range of applications, including headlights, taillights, and power windows. Browse our wire and cable collection for various gauge options.
• 10-12 Gauge: This is a good choice for higher-power applications like amplifiers, and some starter motors. Our automotive wiring section has the heavy-duty wire you need.
• 4-8 Gauge: This is typically used for main power and ground wires, connecting the battery to the fuse box or a high-powered amplifier. For these heavy-duty applications, explore our battery cable options.

Don't Forget the Terminals and Connectors!

Choosing the right wire gauge is only half the battle. You also need to use high-quality terminals and connectors that are properly sized for the wire you are using. A poor connection can create a point of high resistance, which can lead to a voltage drop and a potential fire hazard.

Consider using ring terminals for secure connections to battery posts and ground points, quick disconnects for easy removal of components, or butt connectors for joining two wires together. Don't forget to protect your connections with heat shrink tubing for added durability and moisture resistance.

Conclusion

Selecting the correct wire gauge is a critical step in any automotive electrical project. By understanding the relationship between wire gauge, amperage, and wire length, you can ensure that your electrical system is both safe and reliable. Always consult a wire gauge chart to be sure, and don't hesitate to reach out to the experts at Electrical Supply Center for advice on your next project. Visit our automotive wiring collection to find everything you need to get started.

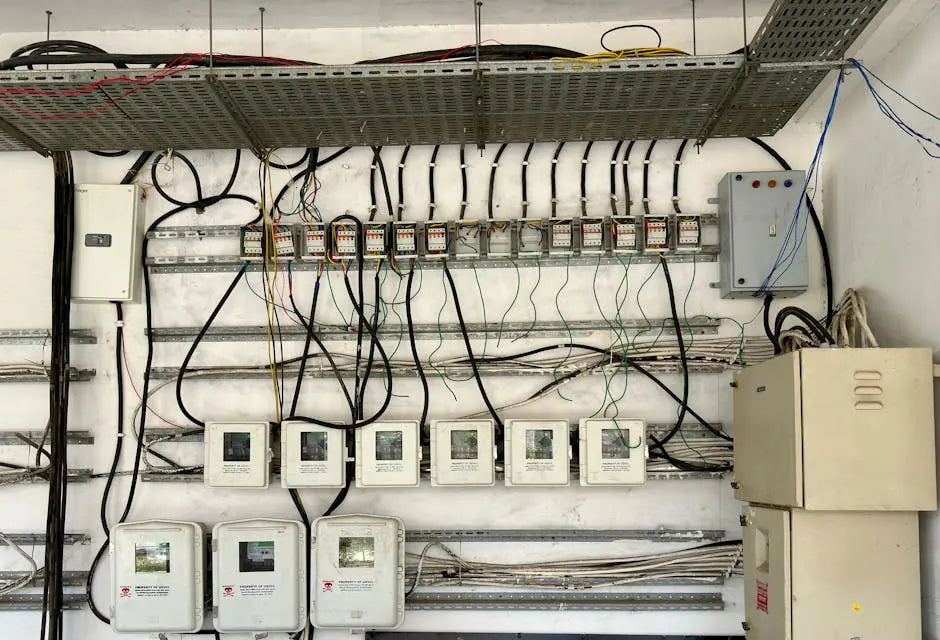

Introduction

The automotive industry is undergoing a monumental shift towards electrification. Electric vehicles (EVs) are rapidly moving from a niche market to the mainstream, with major automakers pledging to phase out internal combustion engines in the coming years. This transition is not just about changing the cars we drive; it's about transforming our entire transportation ecosystem and, crucially, the electrical infrastructure that powers it. For homeowners, businesses, and electricians, the rise of EVs presents both exciting opportunities and significant challenges. This article will explore the multifaceted impact of EVs on our electrical infrastructure, from residential charging solutions to the broader implications for the power grid.

The Growing Demand for EV Charging

The most immediate impact of the growing number of EVs on the road is the need for a robust and accessible charging infrastructure. EV owners need convenient and reliable ways to charge their vehicles, whether at home, at work, or on the go. This demand is fueling innovation and growth in several key areas:

Residential Charging

For most EV owners, the primary charging location is at home. Overnight charging is convenient and often more cost-effective. However, installing a home charging station, also known as a Level 2 charger, requires careful consideration of a home's electrical system. A Level 2 charger requires a dedicated 240-volt circuit, similar to what an electric dryer or oven uses. This often necessitates an upgrade to the home's electrical panel and wiring. Homeowners should consult with a qualified electrician to assess their current electrical capacity and perform any necessary upgrades. This is a significant opportunity for electrical contractors and suppliers of residential electrical components, such as circuit breakers, wiring, and outlets.

Commercial and Public Charging

Beyond the home, the expansion of public and commercial charging networks is critical for supporting long-distance travel and for those who cannot install a home charger. Workplaces, retail centers, and public parking garages are increasingly installing EV charging stations to attract and retain customers and employees. These installations are often more complex than residential setups, involving multiple charging stations and sophisticated load management systems to avoid overloading the building's electrical system. These projects require commercial-grade electrical equipment, including transformers, switchgear, and heavy-duty cabling.

Fast Charging Stations

For long-distance travel, DC fast charging stations are essential. These high-power stations can charge an EV battery to 80% in as little as 20-30 minutes. However, they also place a significant demand on the electrical grid. A single DC fast charger can draw as much power as a small commercial building. The rollout of widespread fast-charging networks requires careful planning and coordination with utility companies to ensure grid stability.

The Impact on the Electrical Grid

The cumulative effect of millions of EVs plugging into the grid simultaneously could be substantial. Utility companies and grid operators are actively working to address the challenges and opportunities presented by this new demand.

Increased Load and Peak Demand

The most significant concern is the potential for EVs to increase peak electricity demand. If a large number of EV owners in a particular area all start charging their vehicles at the same time, such as in the early evening after work, it could strain the local distribution grid. This could lead to power outages or require costly upgrades to transformers and other grid infrastructure.

Smart Charging and Vehicle-to-Grid (V2G) Technology

To mitigate the impact of EV charging on the grid, a variety of smart charging solutions are being developed. Smart charging, also known as V1G, allows utilities and EV owners to control the timing of EV charging to coincide with periods of low electricity demand or high renewable energy generation. This can be achieved through time-of-use electricity rates, which incentivize charging during off-peak hours, or through direct control of charging stations by the utility.

An even more advanced concept is Vehicle-to-Grid (V2G) technology. V2G enables EVs to not only draw power from the grid but also to feed power back into it. This would allow EVs to act as a distributed energy resource, providing grid services such as frequency regulation and peak shaving. While V2G technology is still in its early stages, it has the potential to be a game-changer for grid stability and the integration of renewable energy.

Opportunities for the Electrical Supply Industry

The transition to EVs creates a wealth of opportunities for the electrical supply industry. From residential electricians to large-scale electrical contractors and distributors, the demand for electrical products and services is set to soar. Some of the key product categories that will see increased demand include:

• EV Charging Stations: A wide range of Level 2 and DC fast chargers for residential, commercial, and public applications.
• Wiring and Cable: Heavy-gauge wiring and cable to support the high power requirements of EV chargers.
• Circuit Protection: Circuit breakers, fuses, and other protective devices to ensure the safety of EV charging installations.
• Transformers and Switchgear: For upgrading electrical service and managing the increased load from multiple charging stations.
• Energy Storage Solutions: Batteries and other energy storage systems to supplement the grid and provide backup power for charging stations.

Conclusion

The rise of electric vehicles is a transformative trend that will have a profound impact on our electrical infrastructure. While there are challenges to be addressed, the transition to EVs also presents enormous opportunities for innovation and growth in the electrical supply industry. By embracing new technologies such as smart charging and V2G, and by investing in the necessary upgrades to our electrical grid, we can ensure a smooth and successful transition to a cleaner, more sustainable transportation future. For those in the electrical trade, the future is electric, and it is bright.

Disclaimer: This blog post is for informational purposes only and should not be considered as professional electrical advice. Always consult with a qualified electrician for any electrical work.

Introduction

The automotive industry is undergoing its most significant transformation in a century. The rise of electric vehicles (EVs) is not just changing the cars we drive; it's fundamentally reshaping the infrastructure that powers them. For the electrical supply industry, this shift presents both immense opportunities and significant challenges. As a leading provider of electrical components, Electrical Supply Center is at the forefront of this revolution, supplying the essential parts that will power the future of transportation.

This article explores the multifaceted impact of the EV boom on the electrical supply sector, from the growing demand for charging infrastructure to the need for advanced wiring and components. We'll delve into the key trends, the challenges of grid modernization, and how businesses and consumers can navigate this electrifying new landscape.

The Surge in Demand for EV Charging Infrastructure

The most immediate impact of the EV revolution is the exponential growth in demand for charging infrastructure. This includes everything from residential Level 2 chargers to public DC fast-charging stations. Each of these installations requires a host of electrical components, creating a massive new market for suppliers.

Key Components in Demand

• Circuit Breakers and Panels: Upgraded electrical panels and high-capacity circuit breakers are often necessary to handle the increased load of an EV charger.
• Wiring and Cabling: Heavy-gauge wiring is essential for safely delivering high levels of power to charging stations.
• Connectors and Terminals: Low-resistance terminations matter wherever high current flows, from panel feeds to battery connections. Browse our tinned copper lugs and terminals.
• Transformers: In some cases, new transformers are needed to step down the voltage from the grid to a level that's usable by charging stations.

Grid Modernization: A Pressing Challenge

The widespread adoption of EVs places a significant strain on the existing electrical grid. Many local grids were not designed to handle the high, concentrated power demands of a neighborhood of EV owners all charging their vehicles simultaneously. This has led to a push for grid modernization, which involves upgrading transformers, substations, and distribution lines to increase capacity and improve reliability.

Smart Charging and Vehicle-to-Grid (V2G) Technology

To mitigate the impact of EV charging on the grid, a new generation of smart charging solutions is emerging. These systems allow utilities to manage charging times, shifting them to off-peak hours when electricity demand is lower and prices are cheaper.

Even more revolutionary is the concept of Vehicle-to-Grid (V2G) technology. V2G enables EVs to not only draw power from the grid but also to feed it back. This turns every EV into a mobile energy storage unit, which can help to stabilize the grid during periods of high demand and even provide backup power during outages. These advanced systems require sophisticated control systems and communication protocols, all of which rely on a robust electrical supply chain.

The Impact on Automotive and Marine Electrical Systems

The EV revolution extends beyond passenger cars. The marine and industrial sectors are also beginning to embrace electrification. Electric boats, for example, are becoming increasingly popular, driving demand for specialized marine electrical systems that can withstand the harsh marine environment. Similarly, industrial facilities are electrifying their vehicle fleets and equipment, creating new opportunities for suppliers of industrial electrical components.

Conclusion: Powering the Future of Transportation

The transition to electric vehicles is a paradigm shift that is creating a ripple effect across the entire electrical supply industry. From the raw materials used in batteries to the connectors in charging stations, the demand for high-quality electrical components is skyrocketing. At Electrical Supply Center, we are committed to providing our customers with the products and expertise they need to thrive in this new era of transportation.
